Detailed product introduction

             grid transparent screen,grid transparent screen

The grid transparent screen, also known as the holographic transparent screen or invisible screen, possesses the following notable advantages:

1. Ultra-high transparency: The transparency of the screen can reach over 80%, which is higher than that of conventional transparent screens.

2. Free and customizable: No longer requiring expensive customization for irregular sizes, the module can be freely cut to the desired size without affecting the display on the screen.

3. It can achieve a 2.4-3M full-screen design without a frame, providing an unobstructed view and higher transparency.

grid transparent screen technical parameters

Product model: M6

Luminescence form: Positive luminescence

Pixel spacing: 6.25mm horizontally/vertically

Pixel density: 25600 dots

Light source type: Integrated light and driver

Package form: Black light/SMD2121

Module size: 1000x250mm

                      1500x250mm

Module thickness: ≤1.8MM

Module structure: Array-type single-hole permeable structure

Brightness: ≥5000cd/m²

Contrast ratio: 9000:1

Grayscale level: 16bit

Light transmittance ≥ 80%

Frame rate: 120Hz

Module weight: ≤550g

Viewing angle: Horizontal 140°, vertical 140°

Drive mode: Fully static

Flatness (mm) ≤1mm/m

Pixel out-of-control points < 1/10000,

Input voltage: 100-240v/AC

Startup power consumption ≤ 750w/m²

Operating power consumption ≤ 200w/m²

Service life: ≥100,000 hours

Mean time between failures ≥ 10,000 hours

Operating environment temperature: -30℃ to 60℃ Humidity: 30% to 85%RH

Maintenance method: Front/rear maintenance

grid transparent screen technical parameters

Product model: M3

Luminescence form: Positive luminescence

Pixel spacing: Horizontal/vertical 3.91mm

Pixel density: 65536 dots

Light source type: Integrated lamp and driver

Package type: Black light/SMD2121

Module size: 1000x250mm

                      1200x250mm

Module thickness: ≤1.8MM

Module structure: Array-type single-hole permeable structure

Brightness: ≥4000cd/m²

Contrast ratio: 9000:1

Grayscale level: 16bit

Light transmittance ≥80%

Frame rate: 120Hz

Module weight: ≤550g

Viewing angle: Horizontal 140°, vertical 140°

Drive mode: Fully static

Flatness (mm) ≤1mm/m

Pixel out-of-control points < 1/10000,

Input voltage: 100-240v/AC

Startup power consumption ≤ 750w/m²

Operating power consumption ≤ 200w/m²

Service life ≥ 100,000 hours

Mean time between failures ≥ 10,000 hours

Operating environment temperature: -30℃ to 60℃ Humidity: 30% to 85%RH

Maintenance method: front/rear maintenance

 grid transparent screen, P3.91LED grid transparent screen feature description

1. High definition: With up to 65,536 dots per square meter, it is one of the highest-definition LED transparent screens;

2. High transparency: The power box can be positioned on the side, ensuring that within a certain size range, there are no structural components (including the power box, frame, support rods, hardware, etc.) inside the entire screen. The hollow-out rate is high, resulting in a better visual appearance of the entire screen.

3. Stable High Brightness: The basic brightness is as high as 4000-5000cd. Moreover, since the LED beads are not sealed within a film, even when the brightness of the grid transparent screen is increased, its heat dissipation is significantly better than that of the film-covered screen or crystal film screen. There is no need to worry about the film yellowing or warping due to heat.

4. High degree of freedom: The transparent grid screen can be bent and tailored, thus offering a high degree of freedom.

5. Space-saving: No need to maintain a distance from the glass; it can be directly attached, with a thickness of only 3-6mm.

6. Lightweight: The thickness of the module, which is also the thickness of the PCB, is approximately 1.8mm, and the weight of the screen part is only 3kg/㎡. When attached to glass, it exerts minimal pressure on the glass.

7. Cost savings: No external steel structure required;

8. Modular design: The power supply, control card, and display module are designed and assembled in a modular manner, allowing for independent replacement of each part, thereby minimizing maintenance costs and difficulties.

 transparent screen

Technical parameters of transparent screen:

Pixel spacing (mm): 2.6 horizontally, 5.6 vertically   Pixel density (points/m²): 68,530

Pixel configuration: 1R1G1B   LED lamp packaging form: SMD2020 black light

Gray level: >4096 Display color (M): 16.7

Refresh rate (Hz): >1920               Display brightness (cd/m2): >2000/4500CD

Frame rate (Hz): 60                     Module pixel arrangement: 84*84

Pixel arrangement of the box: 385*89 Module size (mm*mm): 500*125

Box size (mm): 1000*500 Box thickness (mm): 63

Box weight (Kg): 21.5                   Box material: aluminum box

Brightness adjustment level (Level): 256 Power input voltage: AC90V~230V

Drive mode: Constant current drive power supply Input frequency (Hz): 50/60

Scanning mode: 1/16                         Horizontal viewing angle (Deg): 100

Vertical viewing angle (Deg): 90                      Protection level: IP54

Operating temperature range (℃): -20~ +40   Operating environment: Indoor

Operating humidity range (RH): 10% to 90%   Storage temperature range (℃): -40 to +80

Storage humidity range (RH): 10% to 90%   Lifespan (H): 50,000

Photo of  transparent screen cabinet

Features of  transparent screen:

◆ Flexibility: Can be attached to any medium, such as transparent glass, liquid crystal display devices, LED display devices, and so on

◆ Fashionability: The LED transparent screen has a high light transmittance, which does not affect indoor lighting and allows for clear visibility of indoor furnishings.

◆ Technical: Capable of penetrating glass or other media to detect finger movements. All devices are located inside the display window, ensuring device management and asset security

◆ Impressiveness: The size of the LED transparent screen can be customized as desired, and when used in conjunction with videos, the visual effects are truly impressive.

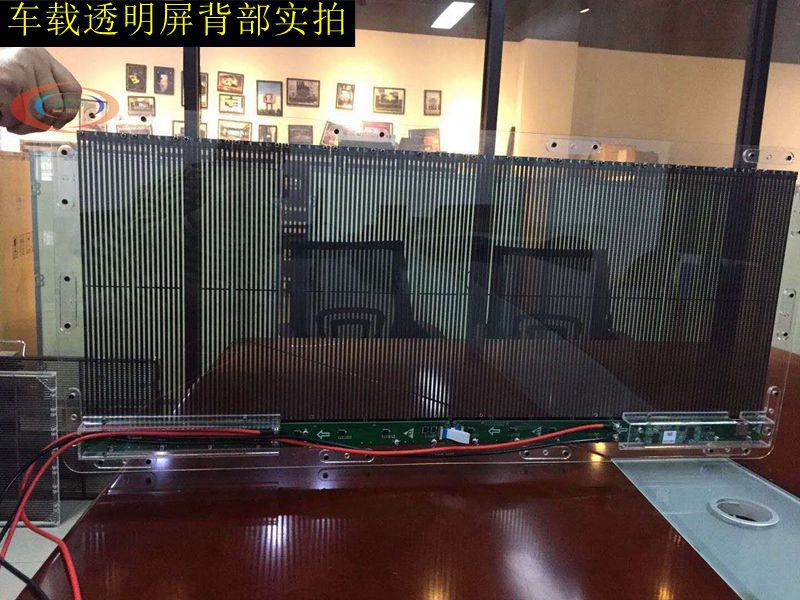

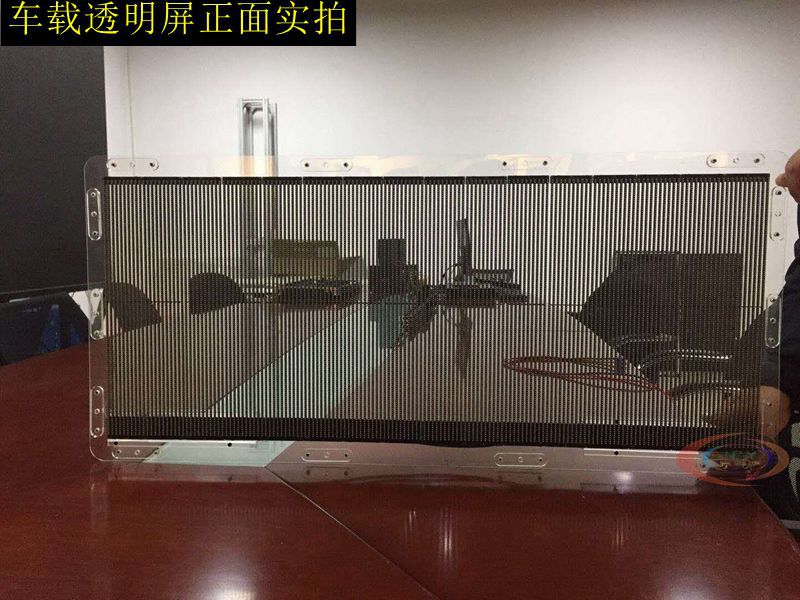

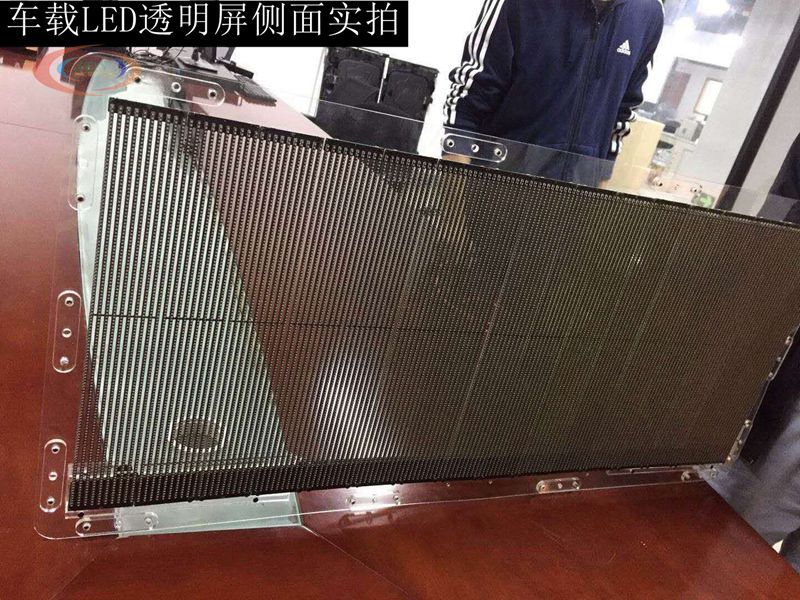

On-board LED transparent screen

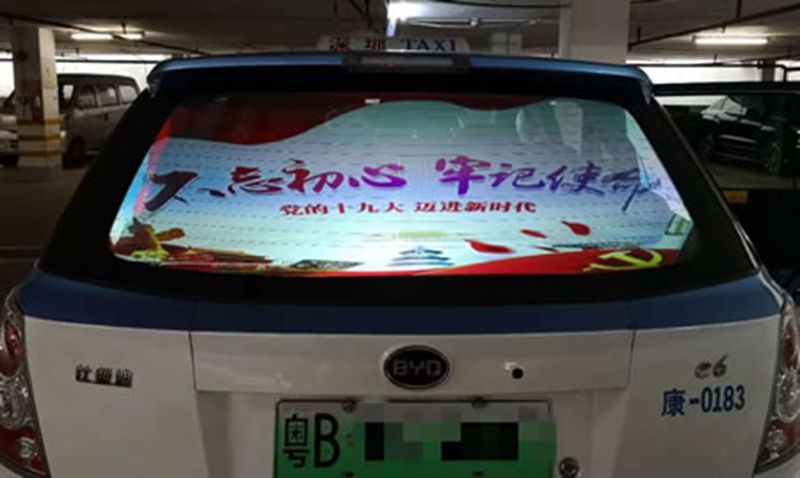

 Vehicle-mounted transparent screens are used on the rear of taxis, buses and other vehicles. They do not affect the lighting inside the vehicle and have a good display effect.

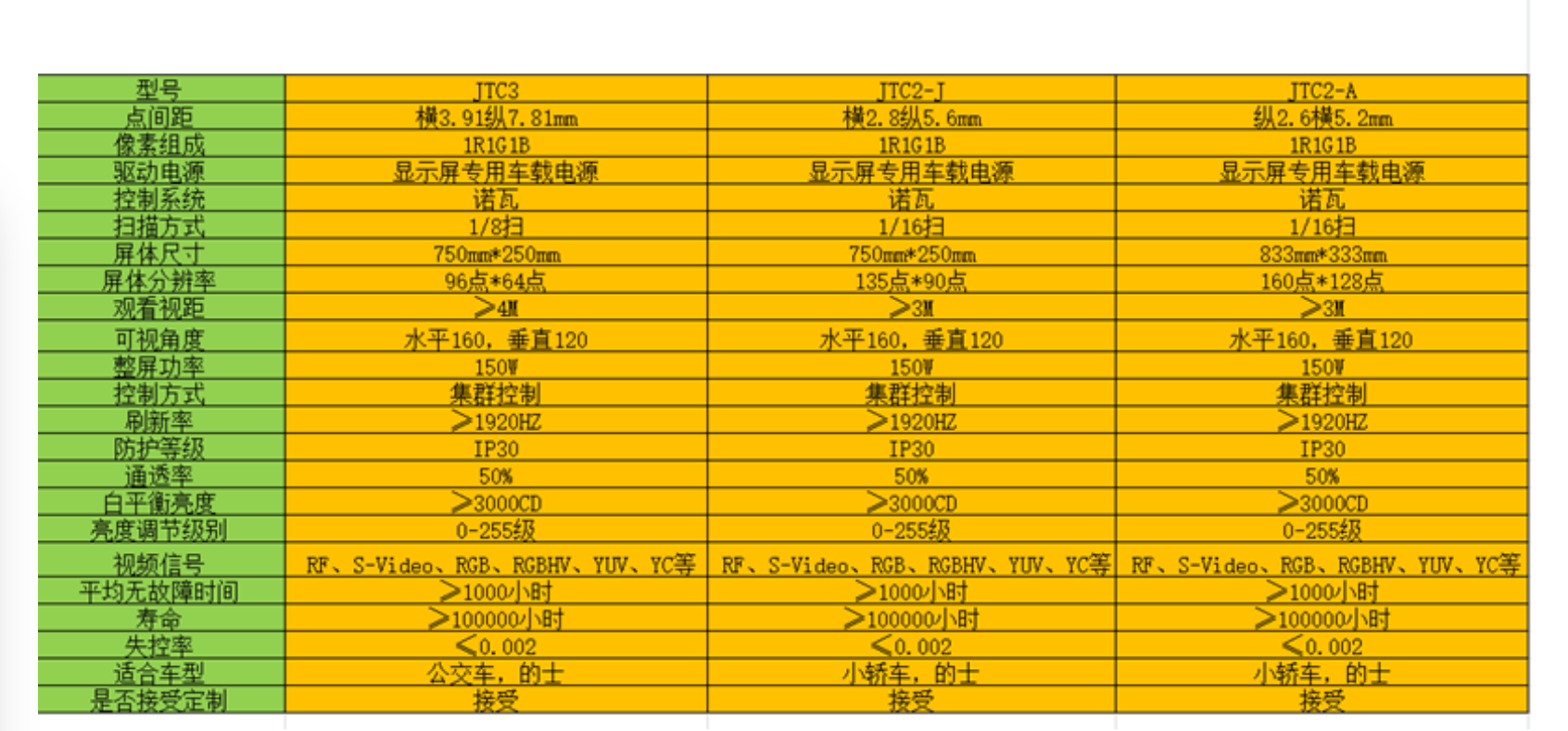

光电车载LED透明屏主要型号有：

Alien-shaped LED transparent screen

The irregular LED transparent screen includes both irregular LED transparent screens and customized-size LED transparent screens.

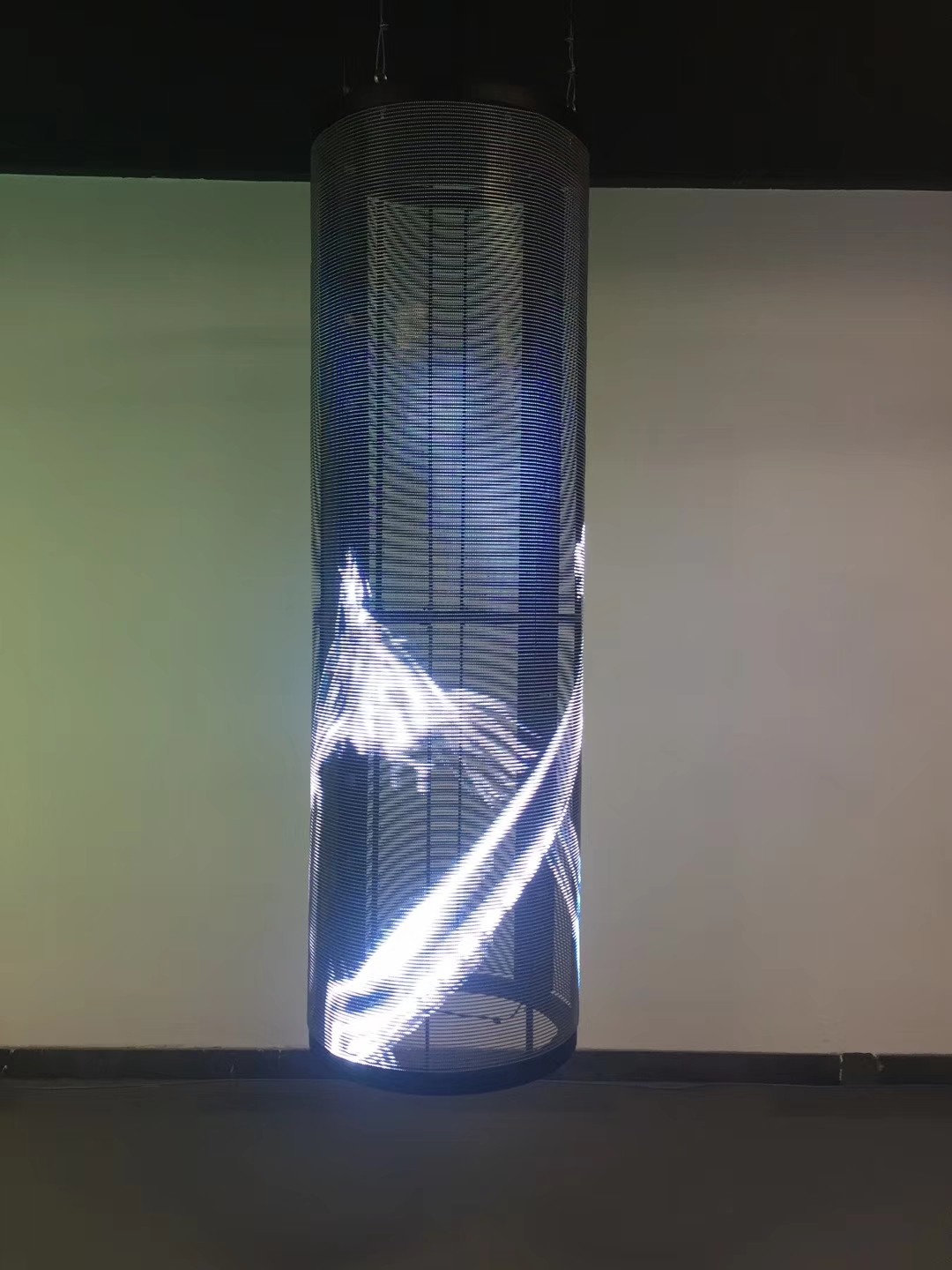

1 Cylindrical LED transparent screen

2 triangular LED transparent screens

3 Size-customized LED transparent screen

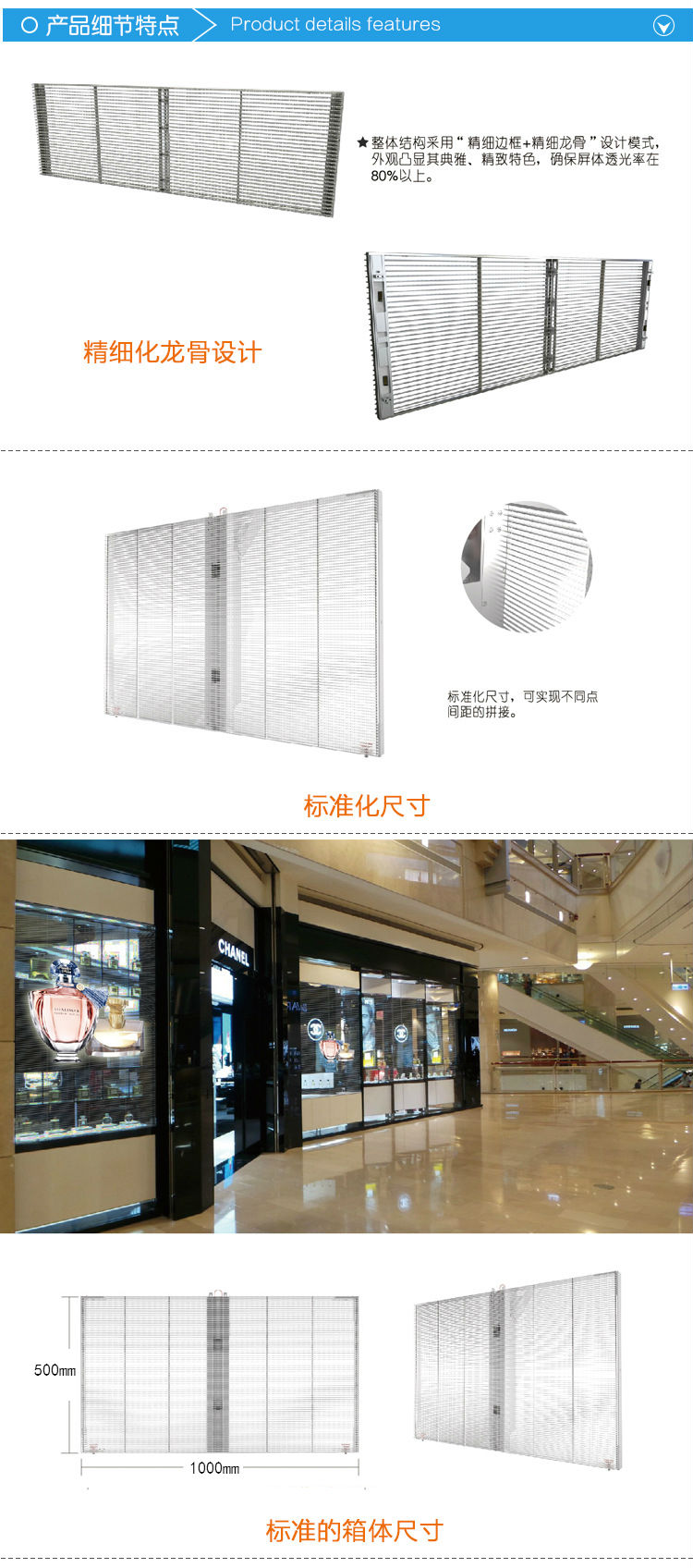

The standard size of the  LED transparent screen is 1000mm * 500mm. Other size specifications that cannot be installed with this specification of the cabinet are size-customized products.

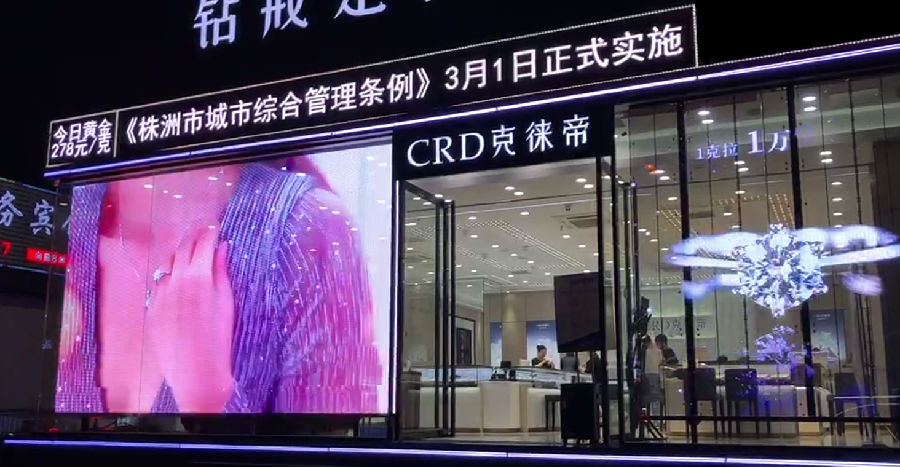

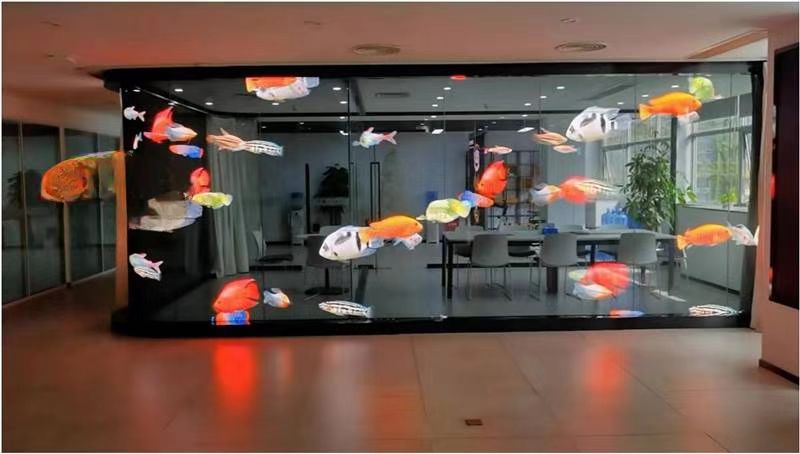

Window display LED transparent screen

The company states that its LED transparent screen products for shop windows are available in a wide range of models, easy to install and maintain, with high transparency and refresh rate, enhancing brand effect and increasing customer traffic

The window LED transparent screen is an application of transparent LED displays and also a relatively important usage method of LED transparent screens at present.

Function introduction of LED transparent screen in shop window

 1. Release information

    The transparent LED window screen is a type of LED display screen that can be controlled by a computer to play dynamic, full-color videos and images. Shop owners can use the transparent LED electronic screen to post some daily promotional information.

 2. Attract the attention of tourists

    The high-tech LED transparent screen transforms glass into a transparent display in an instant. When a fashionable window is "pasted" with a huge transparent electronic screen, the advertising method changes from static to dynamic, and then upgrades to a shopping experience where it "converses" with passers-by. This unique and eye-catching design is extremely attractive.

    3. Selling goods

    The transparent LED electronic window display is the most direct way of advertising. Visitors can directly see the products inside the store through the glass window and display screen, which directly stimulates their desire to purchase. This, in turn, increases the attention rate and foot traffic to the store, promoting the sales of products.

    4. Fixed advertising

    After the installation of the transparent LED window screen is completed, the shop owner can utilize it as a permanent advertising space for future promotional activities, maximizing the effectiveness of the advertisement.

Installation method of LED transparent screen for shop window

1. Floor-standing stackable

It is commonly seen in glass showcases, exhibition halls, etc. If the screen height is not high, it can be simply fixed at the bottom; if the screen height is high, square tubes fixed up and down at the back of the screen are needed to achieve the fixation of the screen.

2. Wall-mounted installation

It is commonly seen in the cross-layer area of the atrium floor, or in application scenarios where the installation of curtain walls/display windows is aimed at indoor broadcasting.

3. Suspended lifting

It is commonly seen in event rentals, atriums of commercial complexes, or special designs of exhibition halls.

Case study of LED transparent screen in shop window:

 transparent screen

Product parameters of transparent screen

1 Pixel spacing: 2.8X5.6mm

2 Pixel density: 61952 dots/㎡

3 Pixel composition: 1R1G1B

5 Pixel material: The LED lampshade is made of epoxy resin

8 LED light-emitting diodes: Guoxing SMD1921/2020

9 Driver IC: ICND2038/Mbi5024 QFN

10 Unit size: 1000*500mm

11 Peak power consumption: 800/400W/㎡, average: 240/180W/㎡

12 Screen weight: <12kg/㎡

13 Power Supply: Mute

14 Connector: Copper material 15mil gold plated. Horns connector: 3U gold plated

15 Wire and cable: Jinlongyu Cable Factory, GB multi-core wire, certified

16 PCB board: International Grade A material

17 Transparency: >52%

18 Protection level: > IP22

19 Flatness: The gap between modules is less than 2mm

20 Average lifespan: >100,000 hours of use

21 Out-of-control point: < 1/10,000 (when used continuously)

22 Power supply requirements: 380V±10%; AC50HZ, three-phase five-wire

23 Continuous working time: > 72 hours

24 Warranty period: 1 year

25 Operating environment: -10℃ to +45℃, 10% to 80%RH

26 Screen brightness: White balance brightness greater than 1000-5500cd/m2;

27 Visible distance: The image is clearly visible when viewed from a distance of 3m to 1500m

28 Light-emitting components: R, G, B use original factory packaged LED lights

29 Brightness adjustment: Automatic adjustment based on ambient brightness and manual adjustment, with a brightness level of 256 or higher

30 View angle: Horizontal 1100, Vertical 1100

31 Grayscale level: greater than 4096 levels of grayscale

32 White field color temperature: 5500K-9300K

33 Image adjustment: White balance, contrast, brightness, and hue adjustment

34 Image processing: image denoising, enhancement, motion compensation, color coordinate transformation processing

35 Drive mode: static constant current drive

36 Scanning method: 11 scans

37 Earth leakage current: < 2 mA

38 Signal processing capability: >10bit

39 Brightness uniformity: When the entire screen is at its brightest in monochrome, the ratio of the lowest pixel brightness to the highest pixel brightness is greater than 0.95

40 Decay rate: Less than 5% in 2 years

41 Contrast ratio: 2000:1

42 Refresh rate: >1920HZ

43 Frame rate: > 60HZ

44 Video input: Compatible with PAL and NTSC TV signals, as well as HDTV and SDTV

45 Software Interface: WINDOWS7, NT, XP, 2000

46 Display mode: 32-bit true color 1024X768

47 Mean time between failures: greater than 10,000 hours

48 LED bead dead pixel rate: Less than one in ten thousand, and distributed discretely

49 Control host: Equipped with uninterruptible power supply (UPS) contro

transparent screen

Adopting standardized production, transparent screens are loved by a large number of customers

Technical parameters of JTS5led transparent screen:

 transparent screen

transparent screen, transparent display screen, led transparent screen, transparent led display screen

1. Main technical parameters of transparent screen:

Series:  Side-Sticking Series

Dot spacing: 7.8125mm

Pixel density: 16,384 px/㎡

LED packaging method: SMD 4312

Single box size (WxH) 1000×1000 mm

Box material: aluminum profile

Weight (per square meter) 15kg

Transmittance: 74%

Brightness: 3000/6000CD

Brightness control level: 256 levels

Grayscale level: 16Bit

Color value: 281 trillion

Contrast

Refresh rate ≥ 1920Hz

Maximum power consumption: 400/800W/㎡

Average power consumption: 120/250W/㎡

Driver chip: Taiwan Juji

Installation method: Stacked installation/Fixed installation

Maintenance method: Front/rear maintenance

Protection level: IP43

Horizontal viewing angle: 140°

Vertical viewing angle: 140°

Operating voltage: DC 5V

Operating temperature: -10 to 40 degrees Celsius

Operating humidity: 10%-90% without condensation

Input voltage: AC 100V~240V

Service life: 100,000 hours

Second: applicable occasions of LED transparent screen

Suitable for: large shopping malls, squares, parks, commercial centers, hotels, exhibitions, showcases, bars, sightseeing elevators, etc.

III: Main Features of the Product:

1. The transparency rate is as high as 74%; it allows light and air to penetrate, without affecting natural lighting and sightlines;

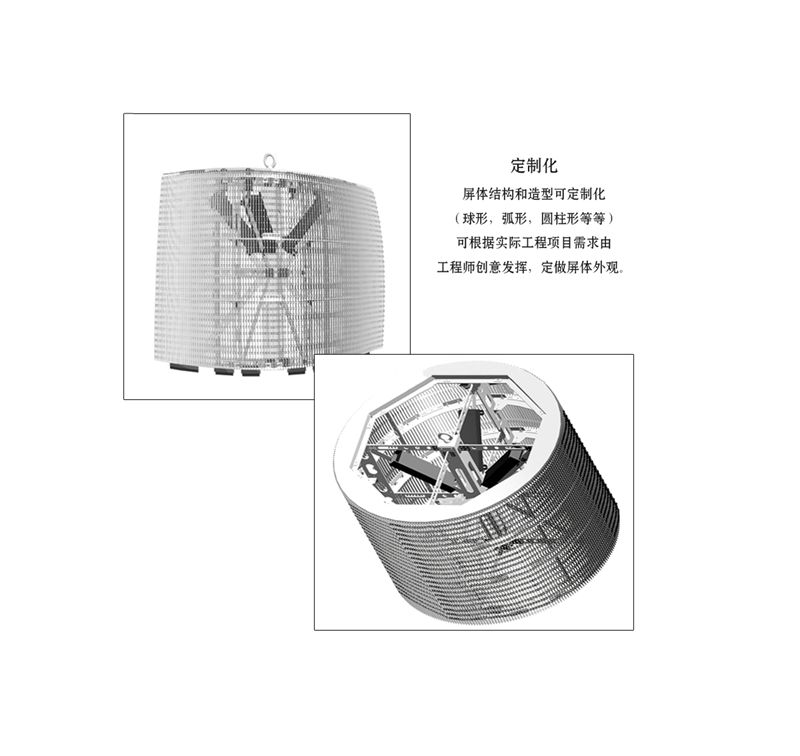

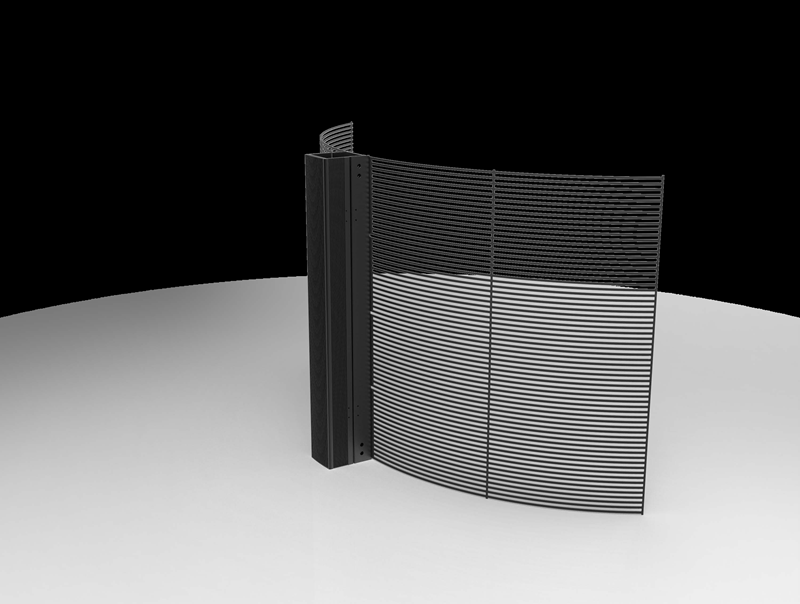

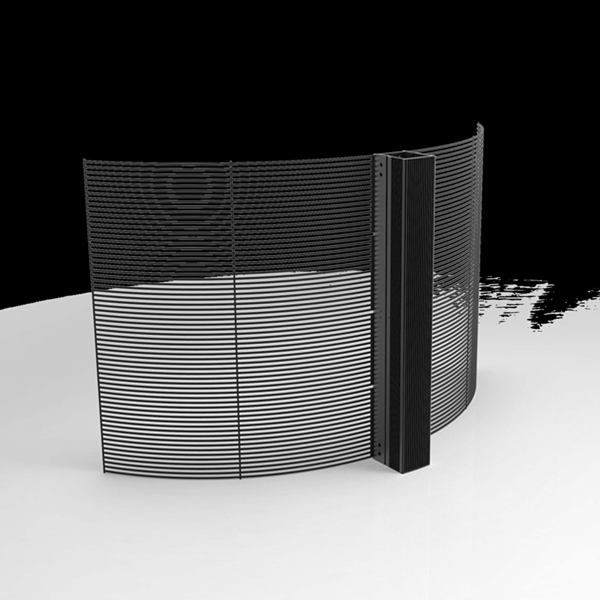

2. The structure and design of the screen body can be customized (arc, cylindrical, elliptical cylindrical, conical, etc.), allowing designers to freely express their creativity and tailor the screen's design according to project requirements.

3. Lightweight and thin, it requires no additional steel structure for installation, and can be directly attached to the existing joists of the curtain wall, saving space and installation costs (For conventional curtain wall and window display projects, there is no need to add additional steel structure, as it can be directly attached to the existing joists of the glass curtain wall or window display for fixation, saving installation costs; the lightweight box reduces the additional tensile force exerted by the screen on the existing joists.)

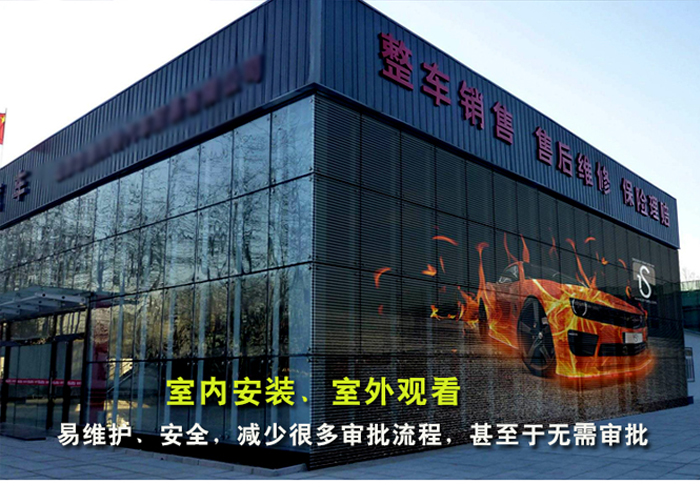

4. Indoor installation, outdoor viewing: easy to maintain, safe, and reduces many approval processes, even eliminating the need for approval;

5. Energy-saving, high efficiency, and fast heat dissipation.

6. Easy to maintain. The plug-in light bar design supports both front and rear maintenance methods for the screen body, and only requires the replacement of a single light bar. The operation is simple, the maintenance cost is low, and the time is short.

7. Provide a complete set of project solutions, including initial project installation solutions, steel structure design, LED display design and development, installation, and normal operation of the screen body lighting.

8. Rich experience in large-scale transparent display projects and customized projects.

led transparent screen

Provide professional  LED transparent screens, P10 transparent LED display system solutions, P3.91 ice screen quotation plans. The P3.91 glass transparent display has high cost performance, high light transmittance, energy saving and environmental protection, and excellent display effect.

led transparent screen

Provide professional  LED transparent screens, P3.91 transparent LED display system solutions, P3.91 ice screen quotation plans. The P3.91 glass transparent display has high cost performance and good display effect.
