Product details

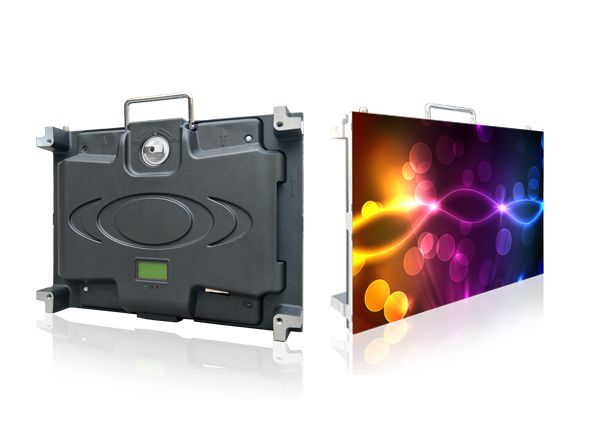

 Small-pitch LED display

P1.2led small-pitch LED display is a popular LED display with a small pixel pitch on the market. It is made using Guoxing 1010 LED beads, equipped with a PWM high-refresh IC, and can achieve a refresh rate of up to 3840HZ.

Technical parameters of small-pitch LED display:

● Dot spacing: 1.25mm

●Physical density: 640,000 dots/㎡

● Color of light emitting point: 1R1G1B

●LED lamp beads: Guoxing SMD 1010 lamp beads

● Driver IC: High-frequency IC

●Box body: Die-cast aluminum box body

● Physical resolution: 192x192px

● Unit module size: 240mm*240mm

●Optimal viewing distance: ≥1m

● View angle: 100°~160°

●Ambient temperature: -10℃~+50℃

●Maximum power consumption: 1200W/㎡

● Control mode: Synchronous control

●Drive mode: 1/32 scanning

●Frame rate: ≥60Hz

●Refresh rate: ≥3840Hz

● Grayscale/Color: Capable of displaying 16.7 million colors (full-color sync), 64K (dual-color sync), and 256 levels (mono-color sync)

● White balance brightness: ≥1200cd/㎡

●Brightness adjustment method: software adjustment from 0 to 100 levels

Computer operating systems: WIN98, WIN2000, WINXP, etc

● Operating voltage (AC): AC220V±5% 50Hz

●Video signals: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc

The control system utilizes: PCIV card + DVI graphics card + transmitter card + receiver card + network cable (fiber optic) transmission

● Mean time between failures: ≥1000 hours

● Pixel out-of-control rate: <0.0002

● Lifespan: 10,000 hours

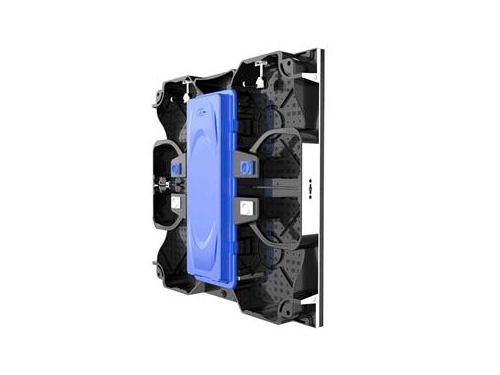

 Small-pitch LED display

We provide professional P1.5 indoor full-color LED display system solutions, including specifications, pricing, project budgeting, and technical support. The high-definition indoor small-pitch full-color LED display P1.5 utilizes Guoxing LED beads, high-refresh rate ICs, and die-cast aluminum cabinets. It is a quality-assured product that has been tested in the market and undergoes rigorous quality control processes. It is suitable for installation in various suitable settings. P1.5 small-pitch LED display

Technical parameters of  small-pitch LED display:

● Dot spacing: 1.538mm

● Physical density: 422,500 dots/㎡

● Color of light emitting point: 1R1G1B

●LED lamp beads: Hongsheng SMD 1010 lamp beads

● Driver IC: High-frequency IC

●Casing: Die-cast aluminum casing

● Physical resolution: 208x104px

● Unit module size: 320mm*160mm

●Optimal viewing distance: ≥1m

● View angle: 100°~160°

● Ambient temperature: -10℃~+50℃

●Maximum power consumption: 1200W/㎡

● Control mode: Synchronous control

● Drive mode: 1/52 scanning

●Frame rate: ≥60Hz

● Refresh rate: ≥3840Hz

● Grayscale/Color: Capable of displaying 16.7 million colors (full-color sync), 64K (dual-color sync), and 256 levels (mono-color sync)

● White balance brightness: ≥650cd/㎡

●Brightness adjustment method: software adjustment from 0 to 100 levels

Computer operating systems: WIN98, WIN2000, WINXP, etc

● Operating voltage (AC): AC220V±5% 50Hz

●Video signals: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc

The control system utilizes: PCIV card + DVI graphics card + transmitter card + receiver card + network cable (fiber optic) transmission

● Mean time between failures: ≥1000 hours

● Pixel out-of-control rate: <0.0002

● Lifespan: 10,000 hours

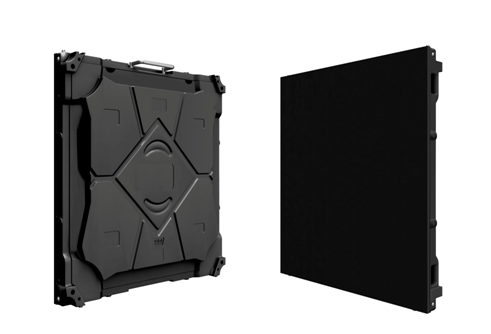

 Small-pitch LED display

We provide professional P1.6 indoor full-color display system solutions, including specifications, pricing, project budgeting, and technical support. The high-definition indoor small-pitch full-color LED display P1.6 utilizes Guoxing LED beads and high-refresh ICs, ensuring reliable quality. It has been tested in the market and undergoes rigorous quality control processes, making it suitable for installation in various suitable settings. JMS1.6 small-pitch LED display

Technical parameters of small-pitch LED display:

● Dot spacing: 1.667mm

●Physical density: 360,000 dots/㎡

● Luminous point color: 1R1G1B

●LED lamp beads: Guoxing SMD 1010 lamp beads

● Driver IC: High-frequency IC

●Box body: Die-cast aluminum box body

● Physical resolution: 120x90px

● Unit module size: 200mm*150mm

●Optimal viewing distance: ≥1m

● View angle: 100°~160°

● Ambient temperature: -10℃~+50℃

●Maximum power consumption: 1200W/㎡

● Control mode: Synchronous control

● Drive mode: 1/30 scanning

●Frame rate: ≥60Hz

●Refresh rate: ≥3840Hz

● Grayscale/Color: Capable of displaying 16.7 million colors (full color sync), 64K (dual color sync), and 256 levels (single color sync)

● White balance brightness: ≥1200cd/㎡

●Brightness adjustment method: software-controlled adjustment from 0 to 100 levels

Computer operating systems: WIN98, WIN2000, WINXP, etc

● Operating voltage (AC): AC220V±5% 50Hz

●Video signals: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc

The control system utilizes: PCIV card + DVI graphics card + transmitter card + receiver card + network cable (fiber optic) transmission

● Mean time between failures: ≥1000 hours

● Pixel out-of-control rate: <0.0002

● Lifespan: 10,000 hours

 Small-pitch LED display

We provide professional P1.8 indoor full-color display system solutions, including specifications, pricing, project budgets, and technical support. The indoor small-pitch full-color LED display P1.8 adopts high-refresh ICs and die-cast aluminum cabinets, ensuring reliable quality. It has been tested in the market and undergoes rigorous quality control processes, making it suitable for installation in various suitable settings. JMS1.8 small-pitch LED display

Technical parameters of  small-pitch LED display:

● Dot spacing: 1.86mm

● Physical density: 289,444 dots/㎡

● Color of light emitting point: 1R1G1B

●LED lamp beads: Hongsheng SMD 1010 lamp beads

● Driver IC: High-frequency IC

●Box body: Die-cast aluminum box body

● Physical resolution: 172x86px

● Unit module size: 320mm*160mm

● Optimal viewing distance: ≥1m

● View angle: 100°~160°

●Ambient temperature: -10℃~+50℃

●Maximum power consumption: 800W/㎡

● Control mode: Synchronous control

●Drive mode: 1/43 scanning

●Frame rate: ≥60Hz

●Refresh rate: ≥3840Hz

● Grayscale/Color: Displayable 16.7M colors (full color sync), 64K (dual color sync), 256 levels (mono color sync)

● White balance brightness: ≥650cd/㎡

●Brightness adjustment method: software adjustment from 0 to 100 levels

Computer operating systems: WIN98, WIN2000, WINXP, etc

● Operating voltage (AC): AC220V±5% 50Hz

●Video signals: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc

The control system utilizes: PCIV card + DVI graphics card + transmitting card + receiving card + network cable (fiber optic) transmission

● Mean time between failures: ≥1000 hours

● Pixel out-of-control rate: <0.0002

● Lifespan: 10,000 hours

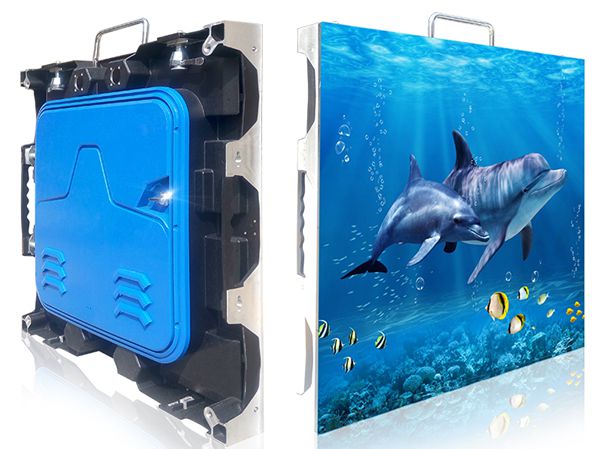

 Small-pitch LED display

We provide professional  indoor small-pitch and P1.9 indoor full-color display system solutions, including specifications, pricing, project budgets, and technical support. Our indoor small-pitch full-color LED display P1.9 is a reliable product that has been tested in the market. With meticulous craftsmanship and rigorous quality control, it is suitable for installation in various suitable occasions.

Technical parameters of  small-pitch LED display:

● Dot spacing: 1.904mm

● Physical density: 275,625 dots/㎡

● Color of light emitting point: 1R1G1B

●LED lamp bead: Guoxing SMD 1010 lamp bead

● Driver IC: High-frequency IC

●Box body: Die-cast aluminum box body

● Physical resolution: 84x84px

● Unit module size: 160mm*160mm

● Optimal viewing distance: ≥1m

● View angle: 100°~160°

●Ambient temperature: -10℃~+50℃

●Maximum power consumption: 1200W/㎡

● Control mode: Synchronous control

● Drive mode: 1/28 scanning

●Frame rate: ≥60Hz

●Refresh rate: ≥3840Hz

● Grayscale/Color: Displayable 16.7M colors (full color sync), 64K (dual color sync), 256 levels (mono color sync)

● White balance brightness: ≥1200cd/㎡

●Brightness adjustment method: software adjustment from 0 to 100 levels

Computer operating systems: WIN98, WIN2000, WINXP, etc

● Operating voltage (AC): AC220V±5% 50Hz

●Video signals: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc

The control system utilizes: PCIV card + DVI graphics card + transmitter card + receiver card + network cable (fiber optic) transmission

● Mean time between failures: ≥1000 hours

● Pixel out-of-control rate: <0.0002

● Lifespan: 10,000 hours

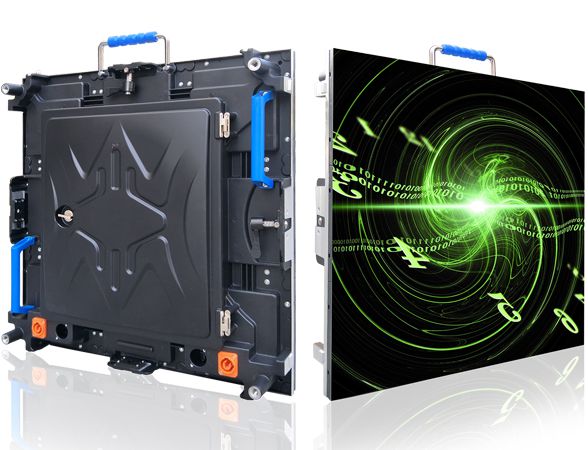

Small-pitch LED display

We offer professional solutions for  indoor small-pitch and P2 indoor full-color display systems, including specifications, pricing, project budgeting, and technical support. Our indoor small-pitch full-color LED display P2 products are reliable and have been tested in the market. With meticulous craftsmanship, our high-definition, high-refresh rate small-pitch LED displays are ideal for high-end clubs, star-rated hotels, conference systems, and other similar settings.

Technical parameters of  small-pitch LED display:

● Dot spacing: 2mm

● Physical density: 250,000 dots/㎡

● Color of light emitting point: 1R1G1B

●LED lamp beads: Guoxing SMD 1010 lamp beads

● Driver IC: High-frequency IC

●Casing: Die-cast aluminum casing

● Physical resolution: 84x84px

● Unit module size: 160mm*160mm

● Optimal viewing distance: ≥1m

● View angle: 100°~160°

●Ambient temperature: -10℃~+50℃

●Maximum power consumption: 1200W/㎡

● Control mode: Synchronous control

● Drive mode: 1/32 scan

●Frame rate: ≥60Hz

●Refresh rate: ≥3840Hz

● Grayscale/Color: Displayable in 16.7 million colors (full-color sync), 64K (dual-color sync), and 256 levels (mono-color sync)

● White balance brightness: ≥1200cd/㎡

●Brightness adjustment method: software adjustment from 0 to 100 levels

Computer operating systems: WIN98, WIN2000, WINXP, etc

● Operating voltage (AC): AC220V±5% 50Hz

●Video signals: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc

The control system utilizes: PCIV card + DVI graphics card + transmitting card + receiving card + network cable (fiber optic) transmission

● Mean time between failures: ≥1000 hours

● Pixel out-of-control rate: <0.0002

● Lifespan: 10,000 hours

Product advantages:

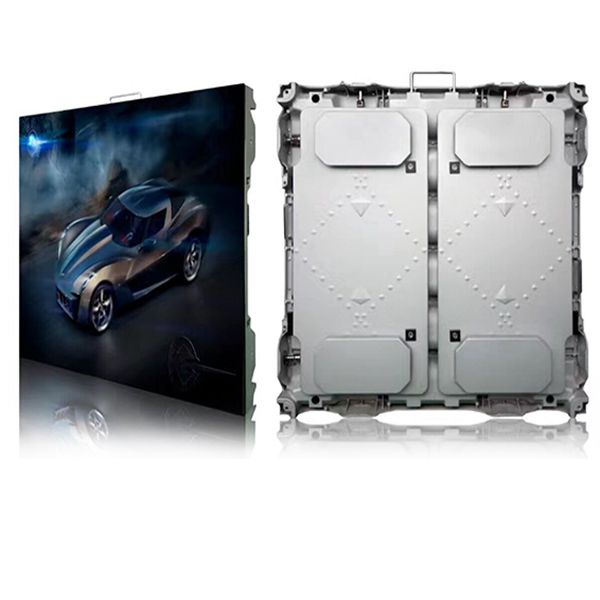

1) Die-cast aluminum box

The box body is made of die-cast aluminum and processed by CNC, with a tolerance of less than 0.1mm

2) Seamless splicing

The die-cast aluminum box body is designed with alignment slots and locating pins, as well as special connecting pieces that allow for fine adjustment of spacing, ensuring perfect and seamless splicing.

 3) Magnetic front maintenance box design

 The module adopts a magnetic suction structure, allowing for quick removal and installation from the box. Any module, power supply, and receiving card can be maintained from the front.

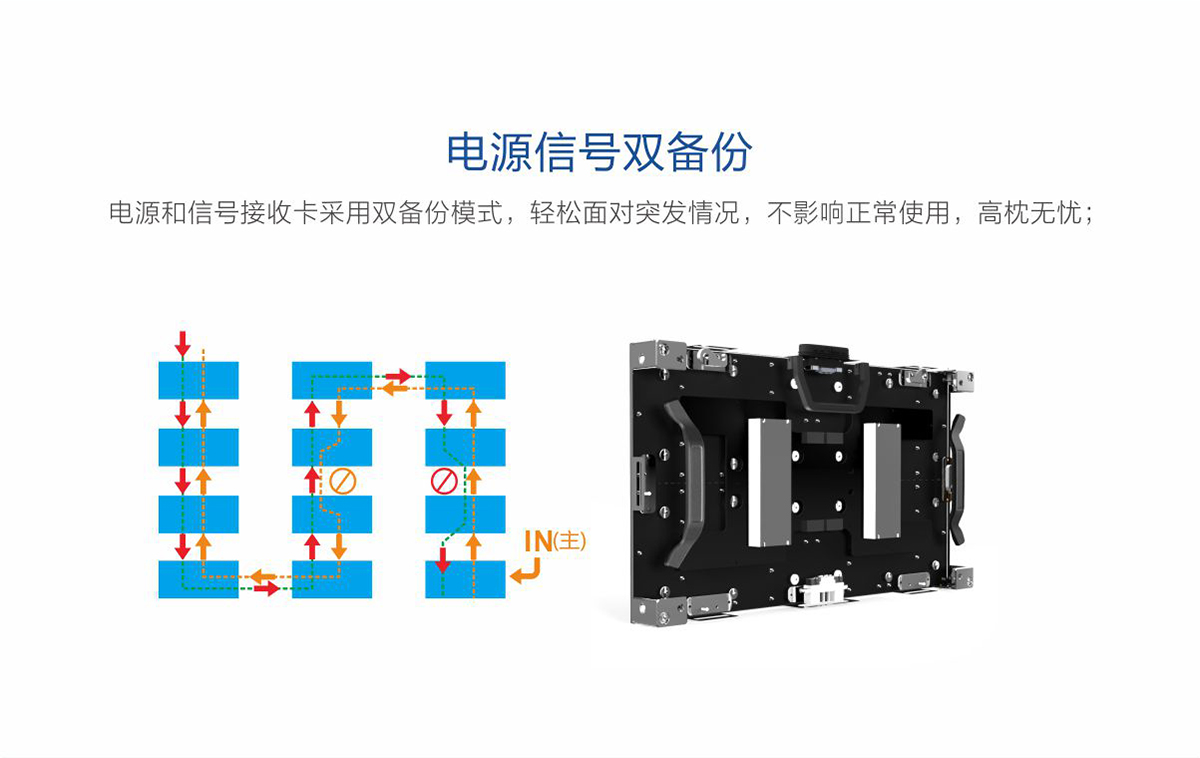

 4) Dual backup of power signals ensures more reliable operation

 The power supply, system card, and aviation head socket are all equipped with dual backups. A dual-channel signal input system is adopted to automatically detect the integrity of the signal. In the event of a failure in one power supply channel, the other channel will automatically take over, ensuring the normal operation of the LED display.

5) High-definition picture, 4K display

The small-pitch LED display can be tiled in any size and direction, with a variety of video source options, easily achieving FHD and 4K large screens

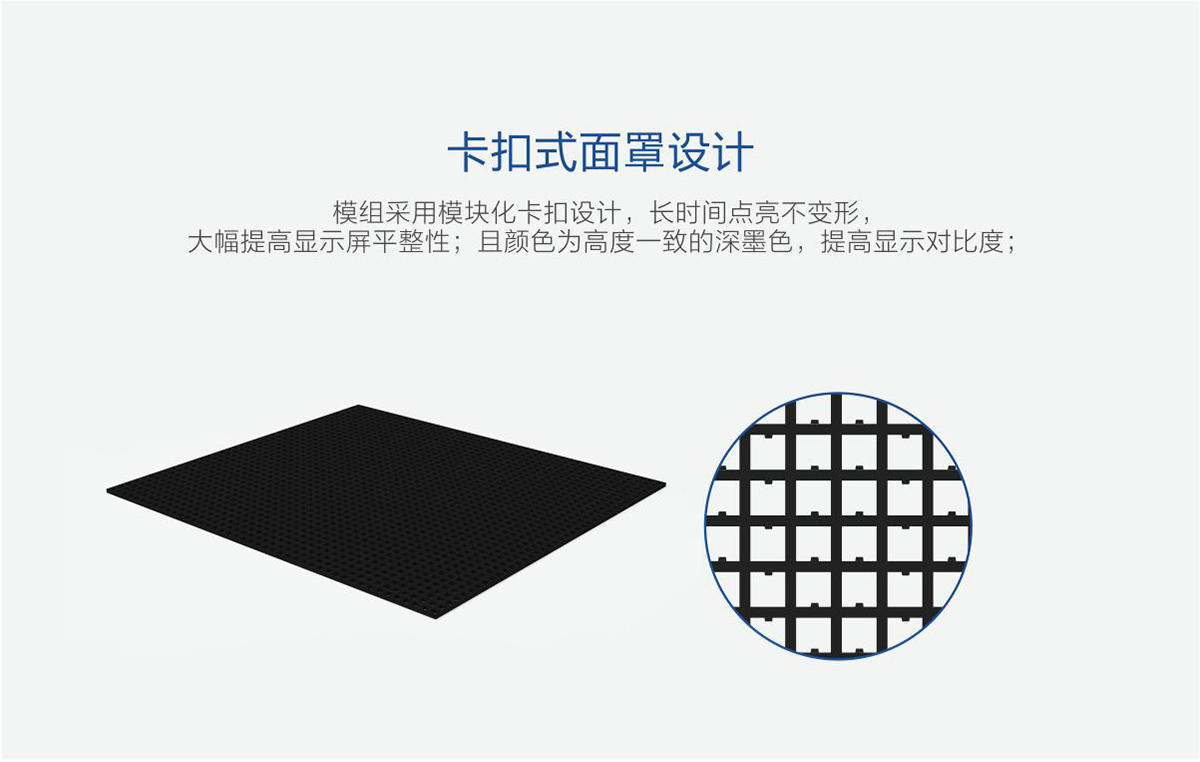

6) Snap-on visor design enhances contrast

The black mask with lights and buckles boasts a contrast ratio of up to 5000:1, ensuring a more uniform and consistent ink color on the screen, thus better reproducing the display colors of the screen;

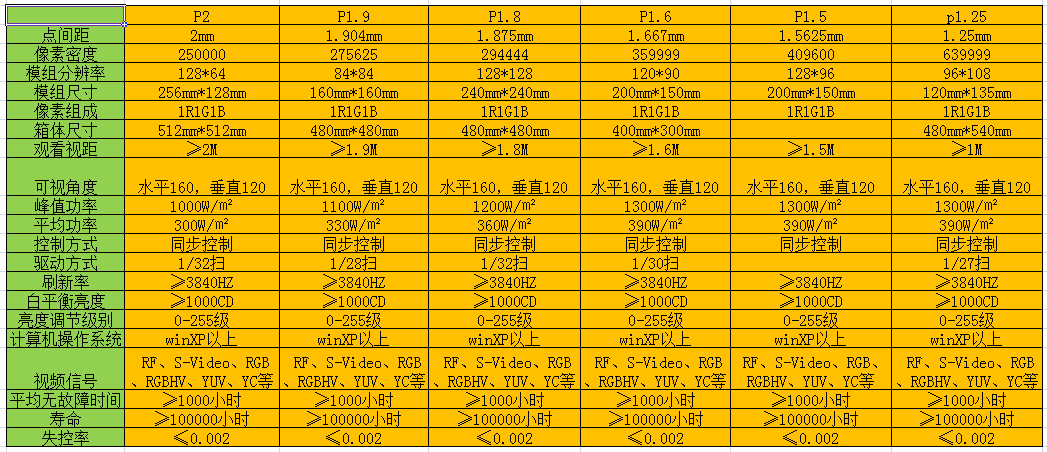

Specification for small-pitch LED display
