indoor LED screen

 indoor LED display

We provide professional indoor LED display and P2.5 indoor full-color display system solutions, including specifications, pricing, project budgets, and technical support. The indoor full-color LED display P2.5 utilizes high-refresh rate ICs and SMD2121 black lights, ensuring reliable quality. It has been tested in the market and undergoes rigorous quality control processes, making it suitable for installation in various suitable settings.

Product details

1) Jucaiyuan's indoor full-color LED display screens come in various forms:

1. Fixed screen using conventional magnetic attraction method; (maintenance before magnetic attraction, small footprint, easy maintenance)

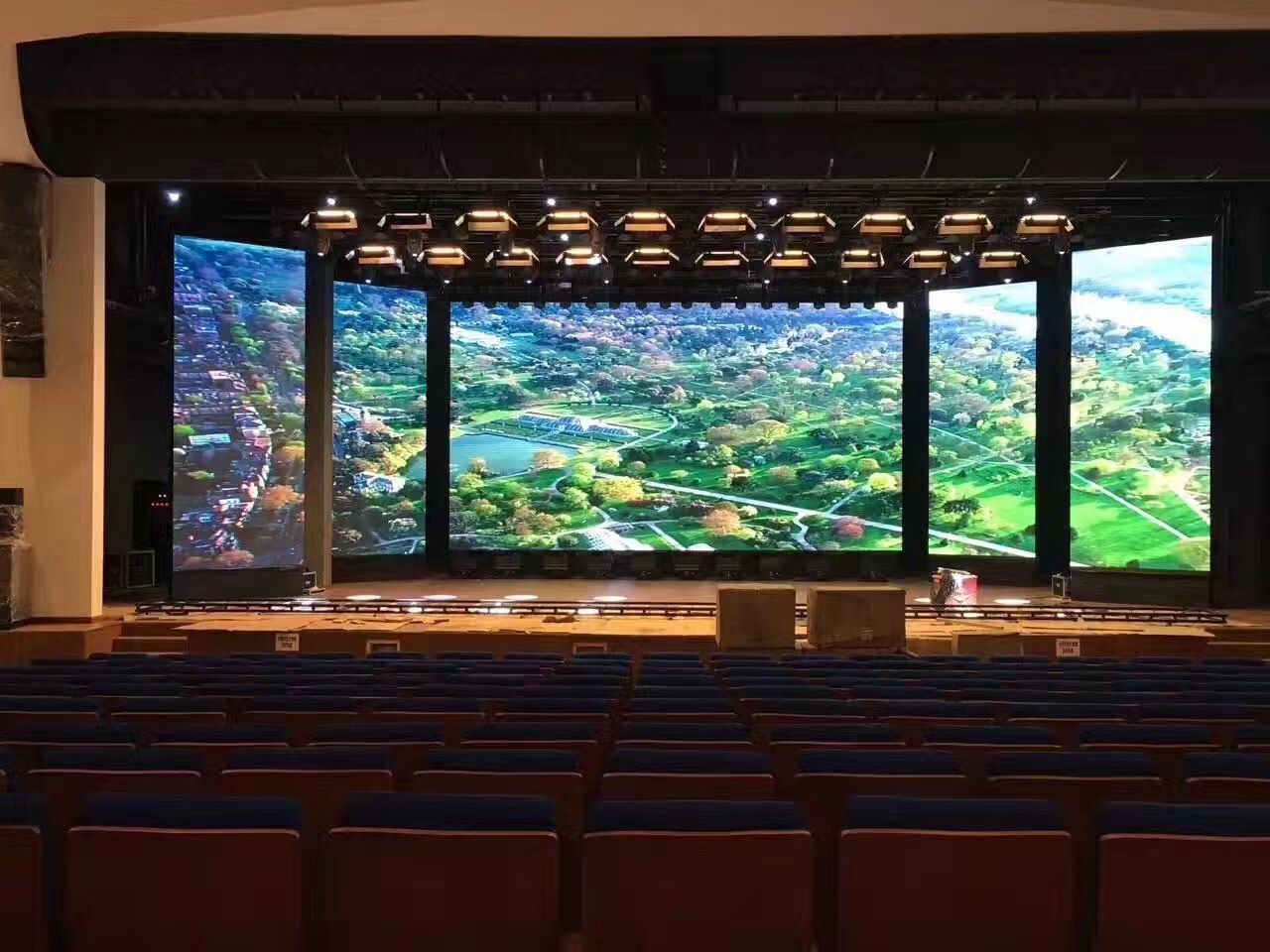

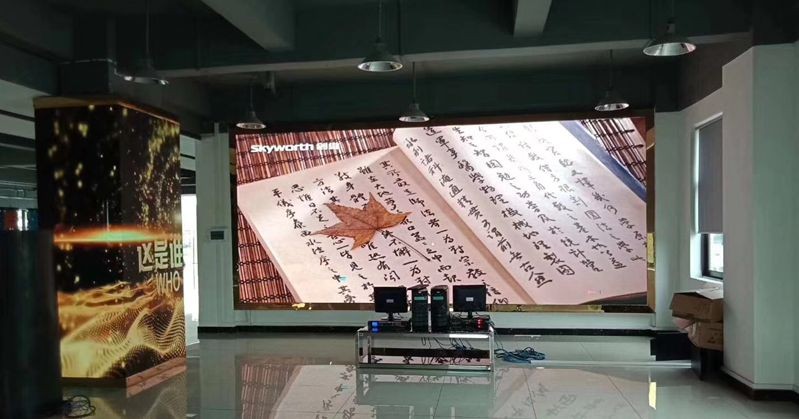

2. Stage background LED display: (main and secondary screens are paired, ensuring no dead angles for viewing and enhancing the sense of depth in the viewing experience)

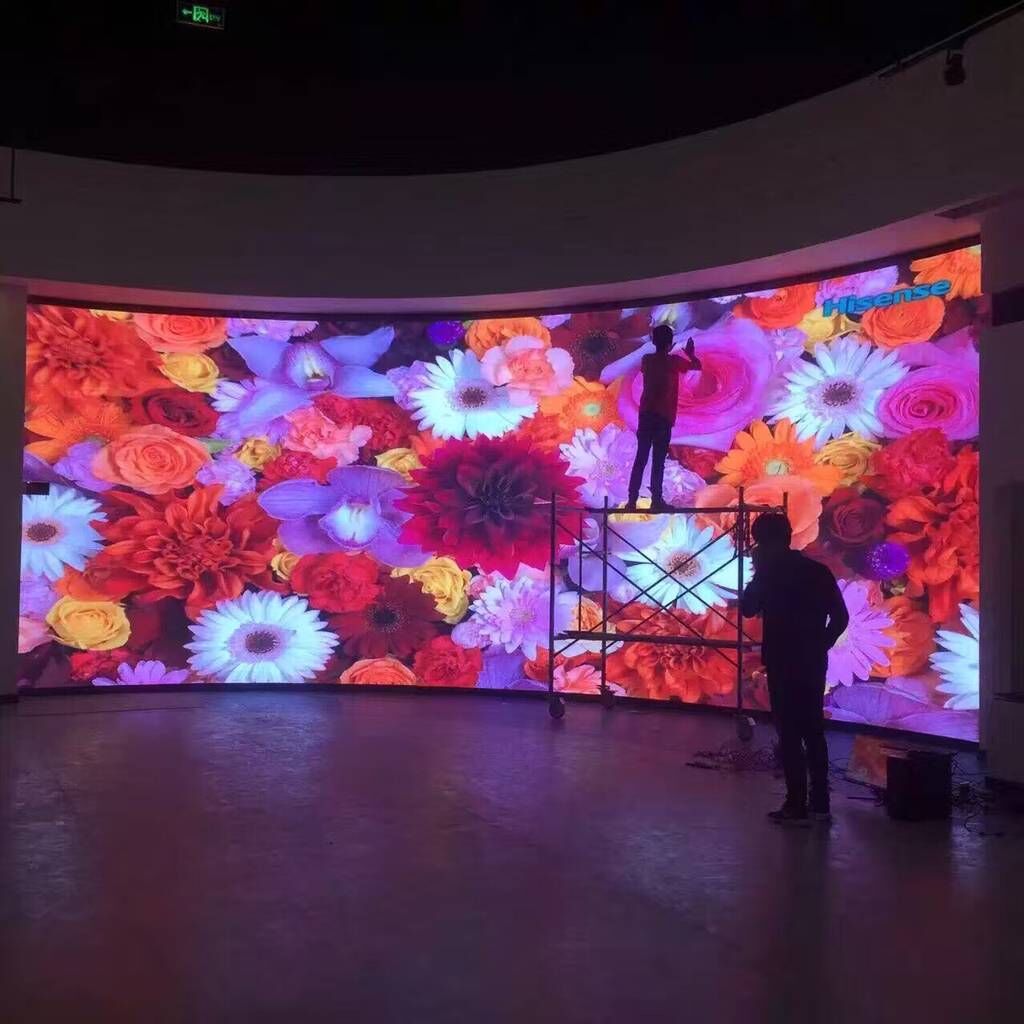

3. Indoor curved LED display: (meeting the installation conditions of curved walls)

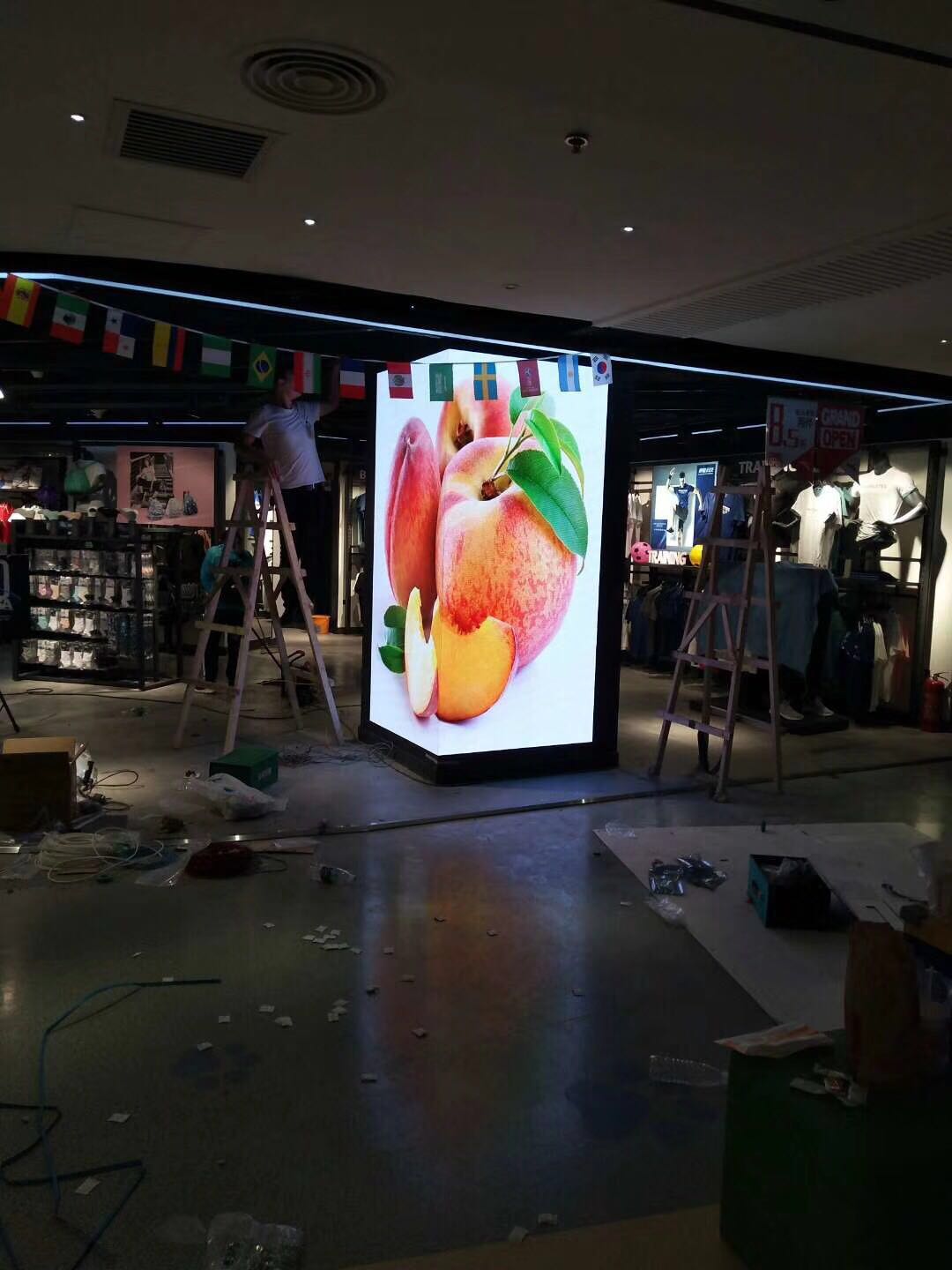

4. Square column LED screen: (Four-in-one screen attracts attention)

5.

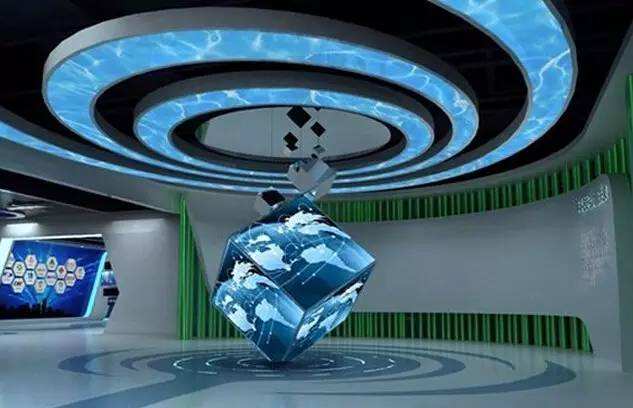

   Hexahedral display screen:

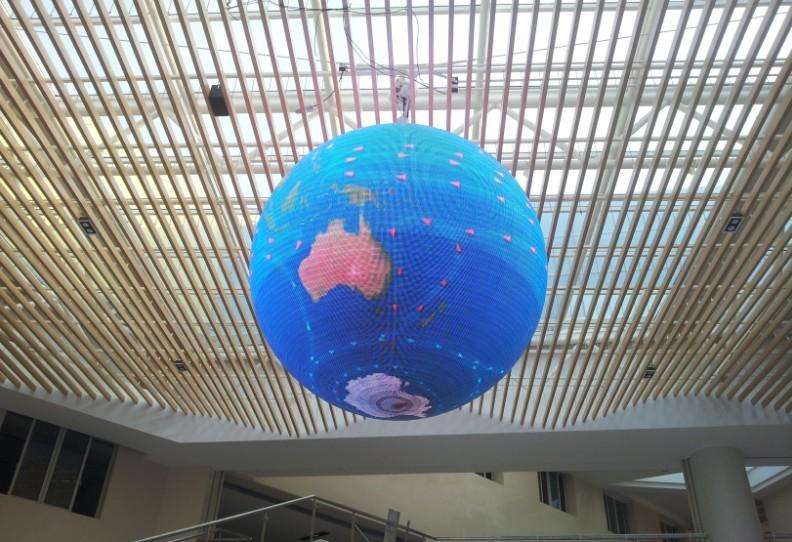

6. LED spherical screen:

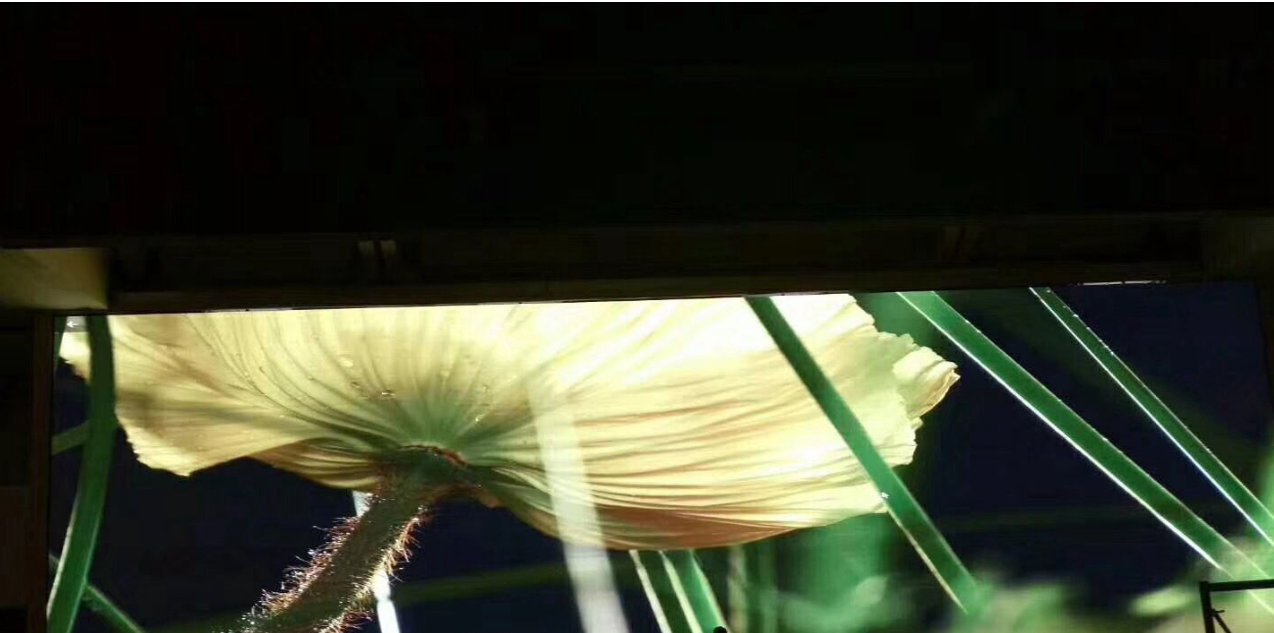

7. LED sky screen display:



8. Indoor cylindrical screen:

9.

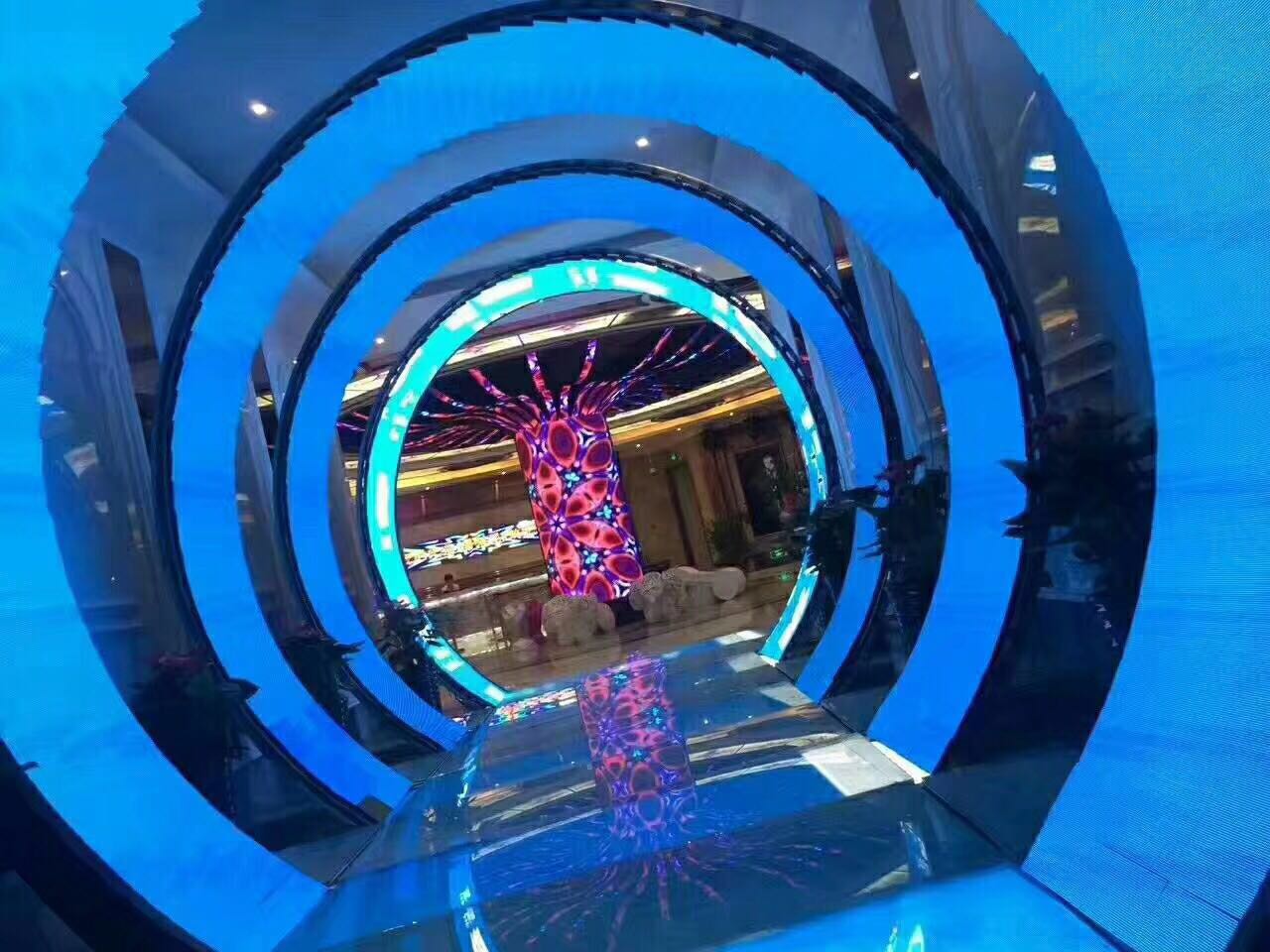

   The time passage leads to the Tree of Wisdom:





   Technical parameters of  LED display

   ● Pixel spacing: 2.5mm

   ● Pixel density: 160,000 dots/㎡

   ● Module size: 160mm*160mm

   ●Module resolution: 64*64 dots

   ● Luminous point color: 1R1G1B

   ● White balance brightness: 1200cd/㎡

   ●Brightness adjustment level: software-controlled adjustment from 0 to 100 levels

   ● Optimal viewing distance: ≥2.5M

   ● Drive mode: Constant current

   ● Scanning mode: 1/32

   ● Refresh rate ≥ 1920HZ

   ●Maximum power: 1200W/㎡

   ●Average power: 300W/㎡

   ● Control mode: Synchronous control

   ● View angle: Horizontal 160 degrees, vertical 160 degrees

   ● Grayscale level: 65536

   ● Refresh rate: adjustable from 300-1000Hz

   ● Contrast ratio: 4000:1

   ● Operating voltage: 5V

   ● Operating environment: Indoor

   ● Operating temperature: -30℃ ∽ 55℃

   ● Service life: 50,000 hours at 50% white balance brightness

   ●Video signals: RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc

   The control system employs: PCIV card + DVI graphics card + transmitter card + receiver card + network cable (fiber optic) transmission

   ● Mean time between failures: ≥1000 hours

   ● Pixel out-of-control rate: <0.0002

   ● Lifespan: 10,000 hours

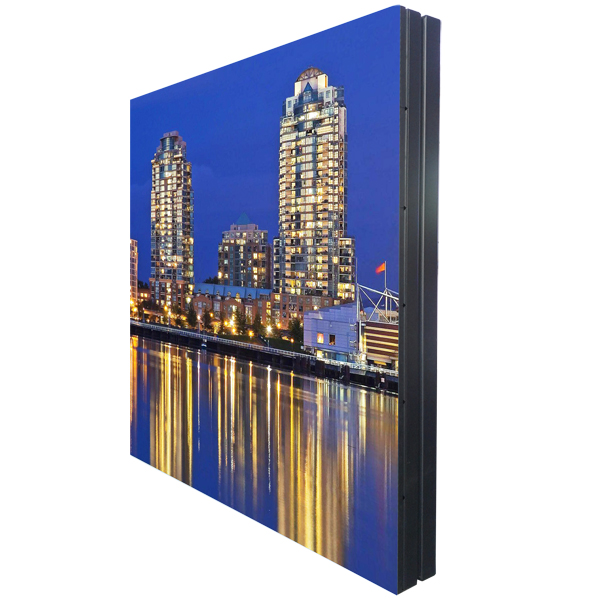

   Introduction to display box

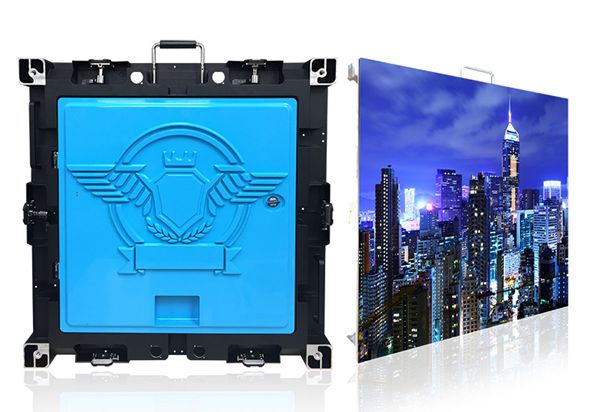

   1)Simple box body

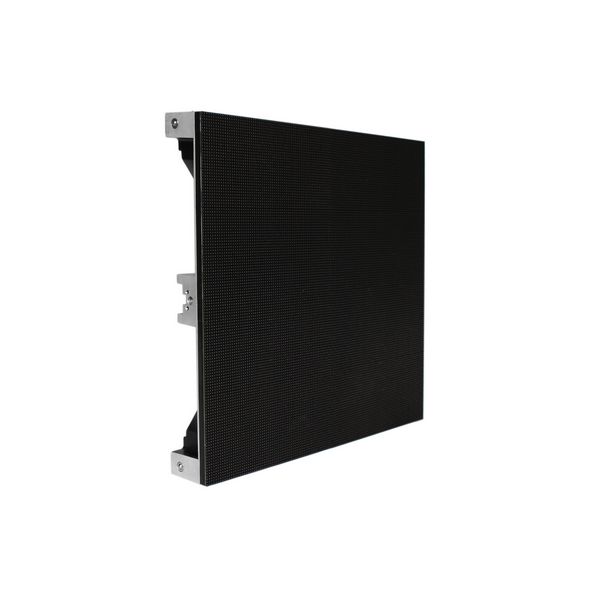

2) Die-cast aluminum box

 Introduction to the functions of  display:

1) Capable of playing video footage in real-time with both audio and visual effects.

     It is compatible with video systems of various standards (such as PAL and NTSC).

     It can display programs from broadcast television, satellite television, and cable television.

     It can display the images of VCR, VCD, and DVD.

     It can be connected to a camera to achieve live broadcasting.

     The system can be connected to special effects processing equipment to display various special effects images (such as image playback, picture-in-picture, slow motion, etc.)

     The system is equipped with audio input and output interfaces to achieve synchronization of sound and image.

2) Capable of displaying computer images in various formats

     It can support multiple languages.

     It can display various characters, texts, and chart information in multiple fonts and styles.

     It can display cartoon animation frames.

     It can display one-dimensional or multi-dimensional special effects images.

     It can achieve functions such as text overlay and picture-in-picture.

 Price composition of  display screen.

1. Screen price: (module, power supply, magnet, power cord, short flat cable)

 2. Control system price: synchronous control system (available options include Lingxingyu, Moxier, and Nova)

 3 Control computer: (desktop or laptop)

 4. Distribution cabinet: Select the power according to the on-site power supply situation and the size of the panel

 5 Audio power amplifier:

 6 Video processor: video conversion, screen splicing.

 7. Steel structure and edging: Fix the screen body and power supply.

 8 Freight: Logistics cost

 9 Installation and commissioning fee:

 10. Integrated wiring fee: Wiring project for external power lines and network cables of the screen body.

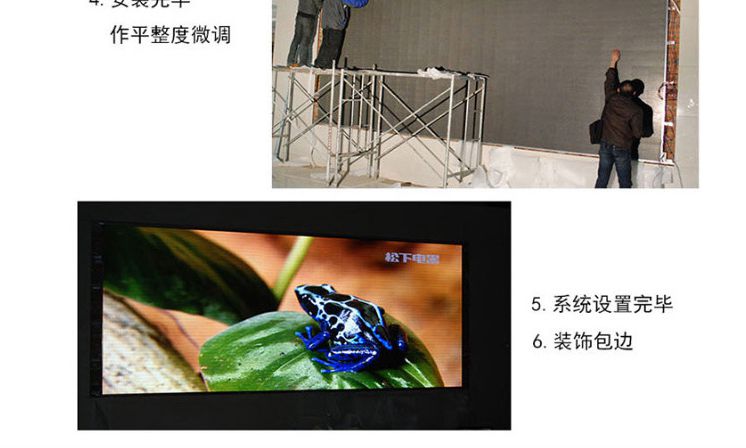

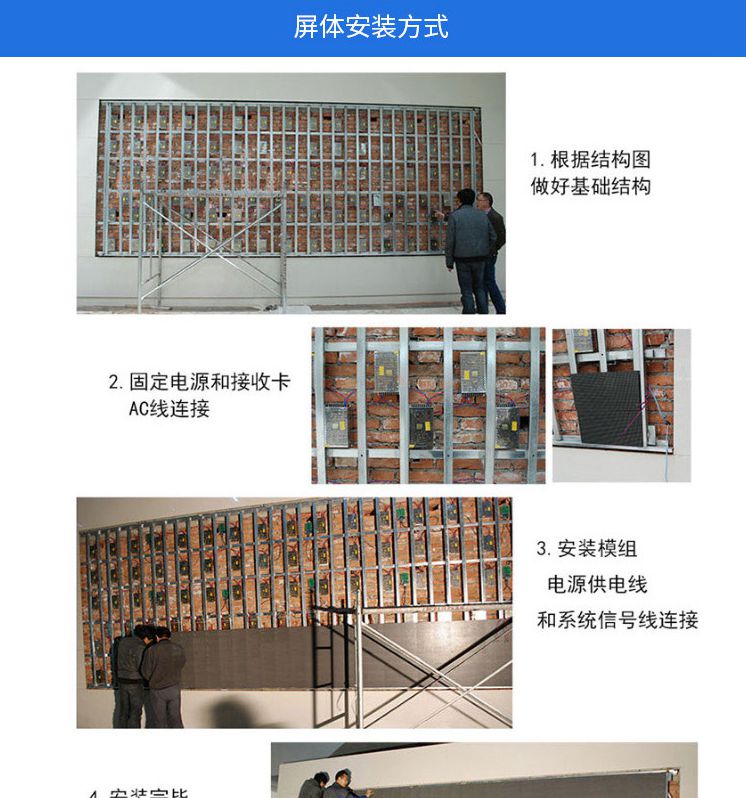

Introduction to magnetic installation method:
