Product detail

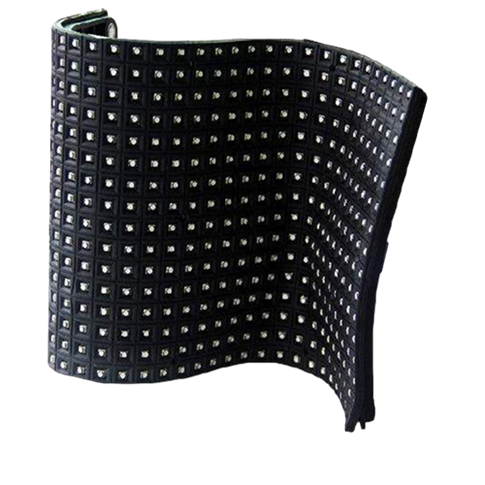

LED flexible module

It features thinness, light weight, extremely small size, high pixel density, capability of displaying curved surfaces, and low installation cost

led soft module parameters:

Dot spacing: 1.86mm

Pixel density: 289,444 dots/㎡

Module resolution: 172*86

Module size: 320mm*160mm

Pixel composition: 1R1G1B

LED lamp bead SMD 1515

Viewing distance ≥ 2M

Viewing angle: Horizontal 160, Vertical 120

Peak power: 1000W/㎡

Average power: 300W/㎡

Control mode: Synchronous/asynchronous control

Drive mode: 1/43 sweep

Refresh rate ≥ 3840HZ

White balance brightness ≥1000CD

Brightness adjustment level: 0-255 levels

Operating system: Windows 7 or above

Video signals: RF, S-Video, RGB, RGBHV, YUV, YC, etc

Mean time between failures ≥1000 hours

Lifespan: ≥100,000 hours

Out-of-control rate ≤0.002

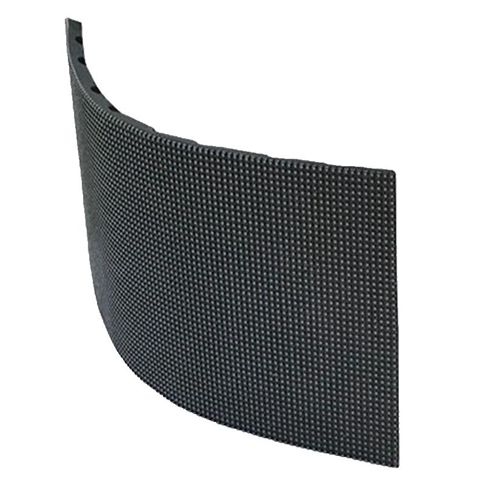

led flexible module

The LED soft module, also known as the LED flexible screen or LED soft screen, is named for its high flexibility, allowing for folding and bending.

led soft module parameters:

Dot spacing: 2mm

Pixel density: 250000

Module resolution: 128*64

Module size: 256mm*128mm

Pixel composition: 1R1G1B

LED lamp bead SMD 1515

Viewing distance ≥ 2M

Viewing angle: Horizontal 160, Vertical 120

Peak power: 1000W/㎡

Average power: 300W/㎡

Control mode: Synchronous/asynchronous control

Drive mode: 1/32 sweep

Refresh rate ≥ 3840Hz

White balance brightness ≥1000CD

Brightness adjustment level: 0-255 levels

Operating system: Windows 7 or above

Video signals: RF, S-Video, RGB, RGBHV, YUV, YC, etc

Mean time between failures ≥1000 hours

Lifespan: ≥100,000 hours

Out-of-control rate ≤ 0.002

 LED flexible screen

The LED soft module, also known as the LED flexible screen or LED soft screen, is named for its high flexibility, which allows it to be folded and bent

led soft module parameters:

Dot spacing: 2.5mm

Pixel density: 160000

Module resolution: 128*64

Module size: 320mm*160mm

Pixel composition: 1R1G1B

LED lamp bead SMD 2121

Viewing distance ≥ 2.5M

Viewing angle: Horizontal 160°, Vertical 120°

Peak power: 900W/㎡

Average power: 270W/㎡

Control mode: Synchronous/asynchronous control

Drive mode: 1/32 sweep

Refresh rate ≥ 3840HZ

White balance brightness ≥1000CD

Brightness adjustment level: 0-255 levels

Operating system: Windows 7 or above

Video signals: RF, S-Video, RGB, RGBHV, YUV, YC, etc

Mean time between failures ≥1000 hours

Lifespan: ≥100,000 hours

Out-of-control rate ≤0.002

led flexible module

The LED soft module, also known as the LED flexible screen or LED soft screen, is named for its high flexibility, which allows it to be folded and bent

Main technical parameters of led soft module

Dot spacing: 3mm

Pixel density: 111111

Module resolution: 80*40

Module size: 240mm*120mm

Pixel composition: 1R1G1B

LED lamp bead SMD 2121

Viewing distance ≥3M

Viewing angle: Horizontal 160, Vertical 120

Peak power: 1000W/㎡

Average power: 300W/㎡

Control mode: Synchronous/asynchronous control

Drive mode: 1/30 sweep

Refresh rate ≥ 3840HZ

White balance brightness ≥1000CD

Brightness adjustment level: 0-255 levels

Operating system: Windows XP or above

Video signals: RF, S-Video, RGB, RGBHV, YUV, YC, etc

Mean time between failures ≥1000 hours

Lifespan: ≥100,000 hours

led flexible module

The LED soft module, also known as the LED flexible screen or LED soft screen, is named for its high flexibility, which allows it to be folded and bent

led soft module parameters:

Dot spacing: 4mm

Pixel density: 62500

Module resolution: 64*32

Module size: 256mm*128mm

Pixel composition: 1R1G1B

LED lamp bead SMD 2121

Viewing distance ≥4M

Viewing angle: Horizontal 160°, Vertical 120°

Peak power: 900W/㎡

Average power: 270W/㎡

Control mode: Synchronous/asynchronous control

Drive mode: 1/16 sweep

Refresh rate ≥ 3840HZ

White balance brightness ≥1000CD

Brightness adjustment level: 0-255 levels

Operating system: Windows 7 or above

Video signals: RF, S-Video, RGB, RGBHV, YUV, YC, etc

Mean time between failures ≥1000 hours

Lifespan: ≥100,000 hours

Out-of-control rate ≤ 0.002

Definition of software module:

  The LED soft module, also known as the LED flexible screen or LED soft screen, derives its name from its high flexibility, allowing for folding and bending.

Production principle:

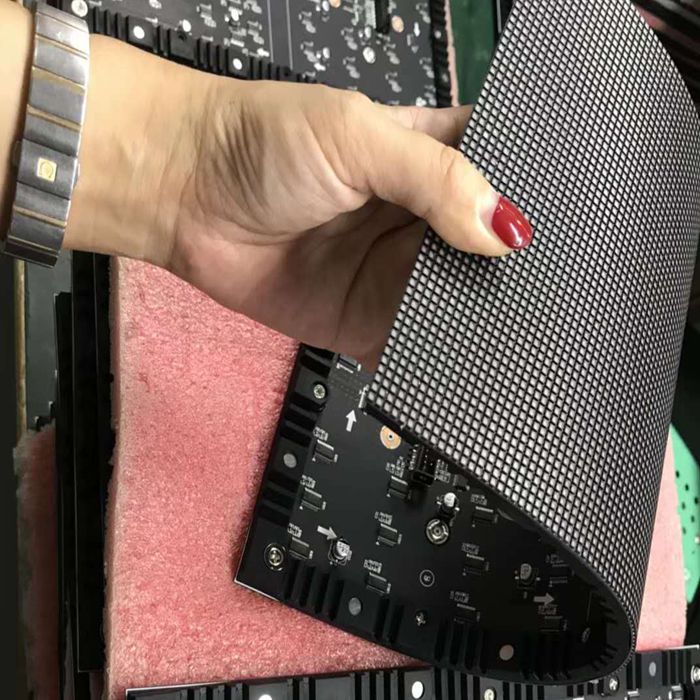

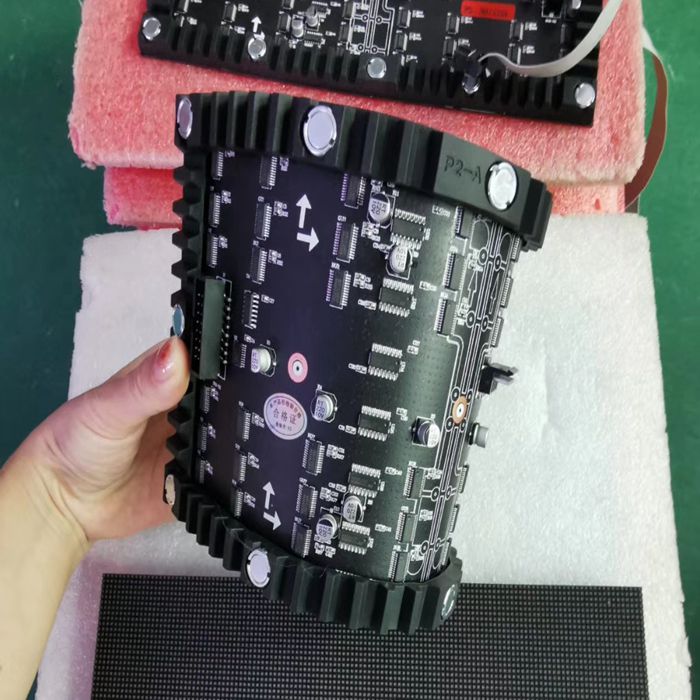

   The conventional LED display unit board uses a regular PCB circuit board, also commonly known as a rigid circuit board, which intuitively feels like a hard board without the characteristic of being significantly bendable. The LED soft module, on the other hand, utilizes a flexible PCB, and both the bottom shell and cover are made of heat-resistant and ultra-soft PC material. The bendability of the LED soft module can reach up to 120 degrees.

Application of LED soft module

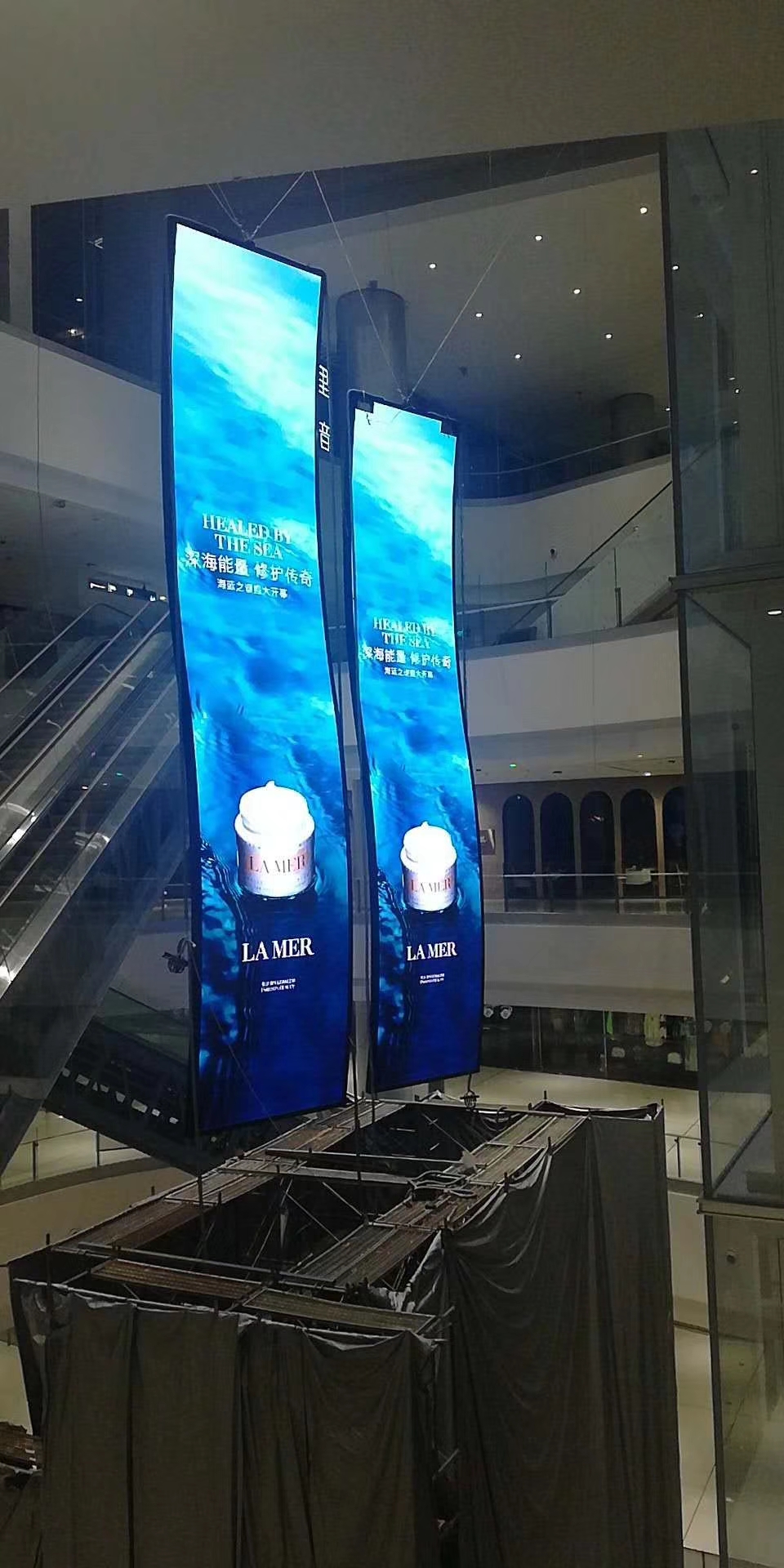

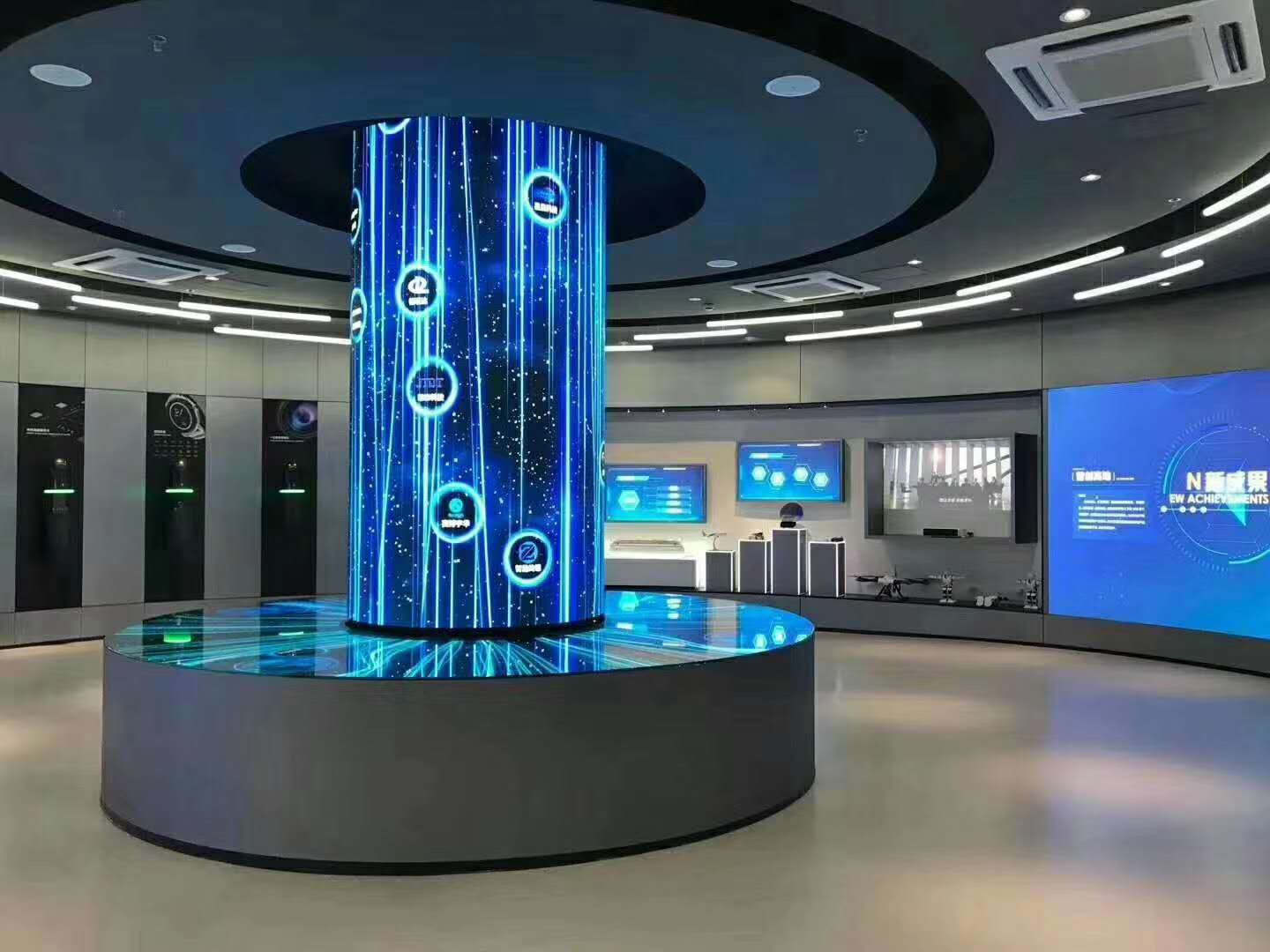

  Full-color soft module displays come in various shapes, including cylindrical, wavy, ribbon-like, and indoor and outdoor curved displays

The P1.86 soft module LED display features thinness, light weight, extremely small size, high pixel density, capability of displaying curved surfaces, and low installation cost. It can fulfill display requirements for various screen shapes, offering a range of screen sizes and resolutions. Furthermore, it can be designed with color arrangements that prioritize specific characteristics (such as contrast, color spots, color mixing, etc.) according to the intended use.
