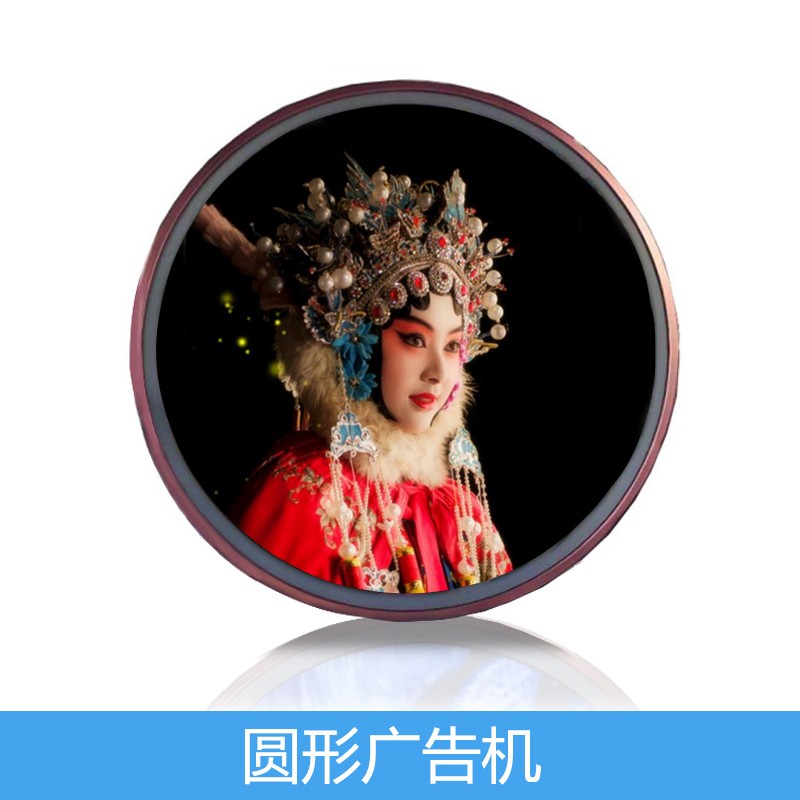

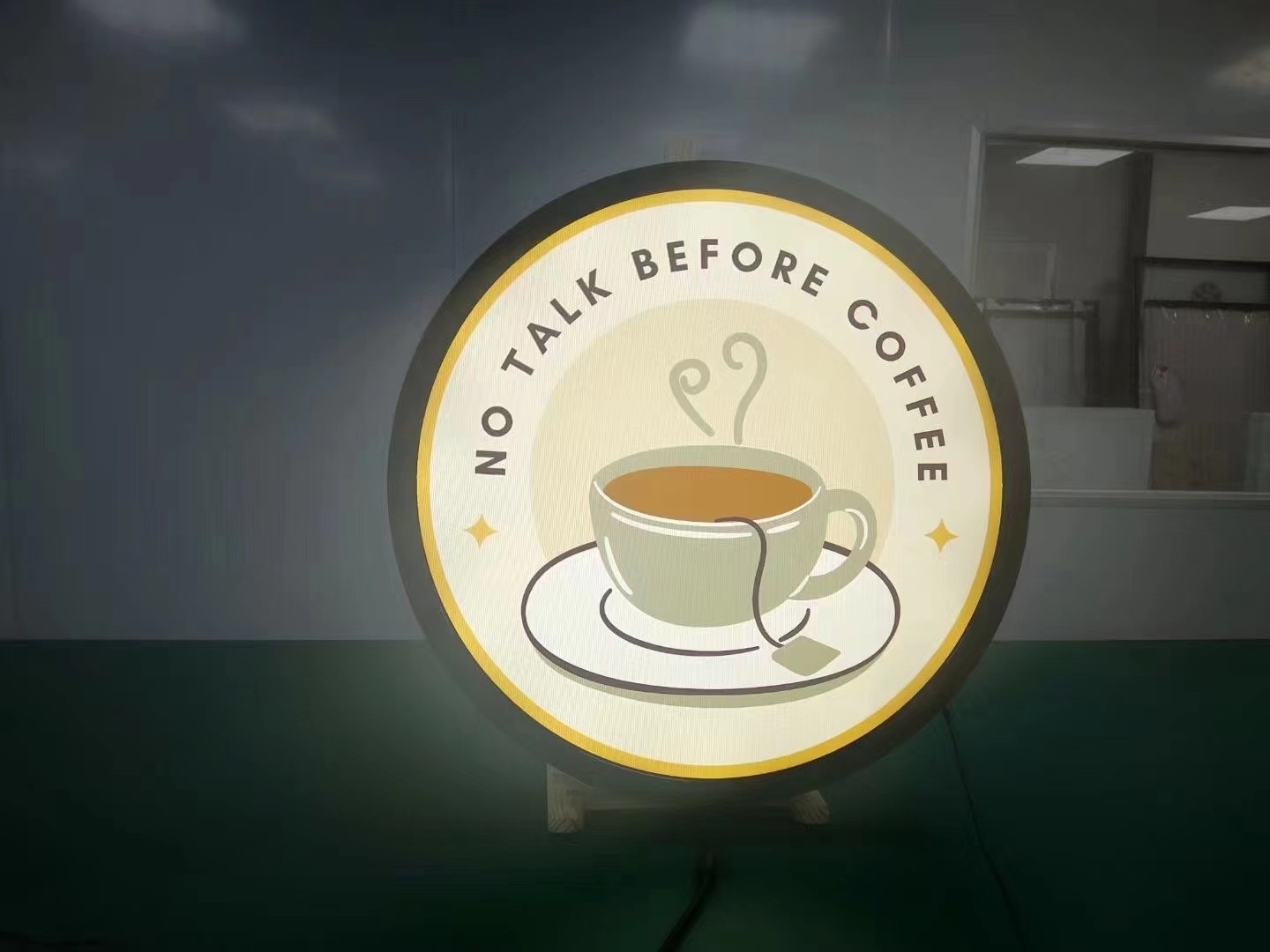

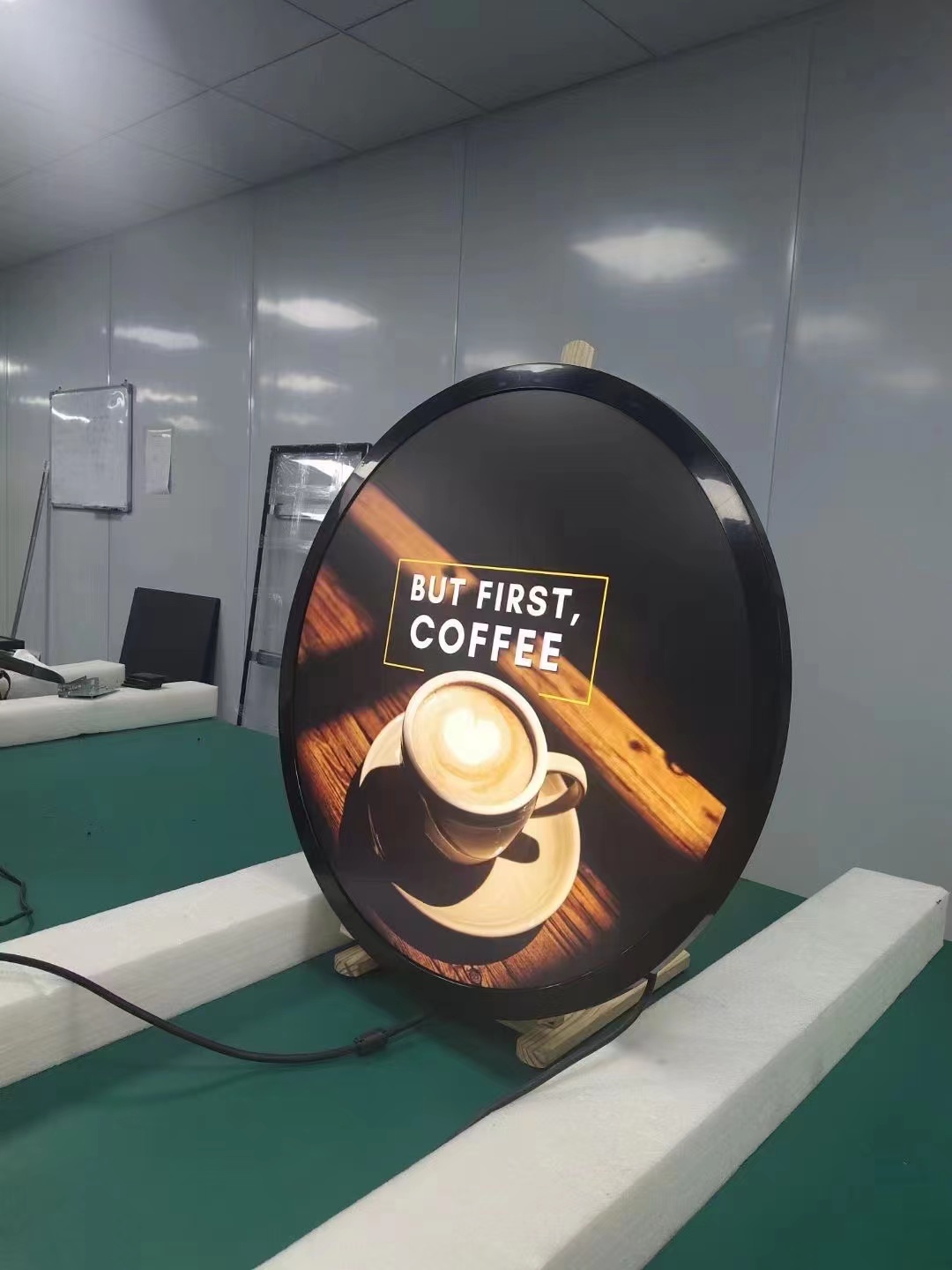

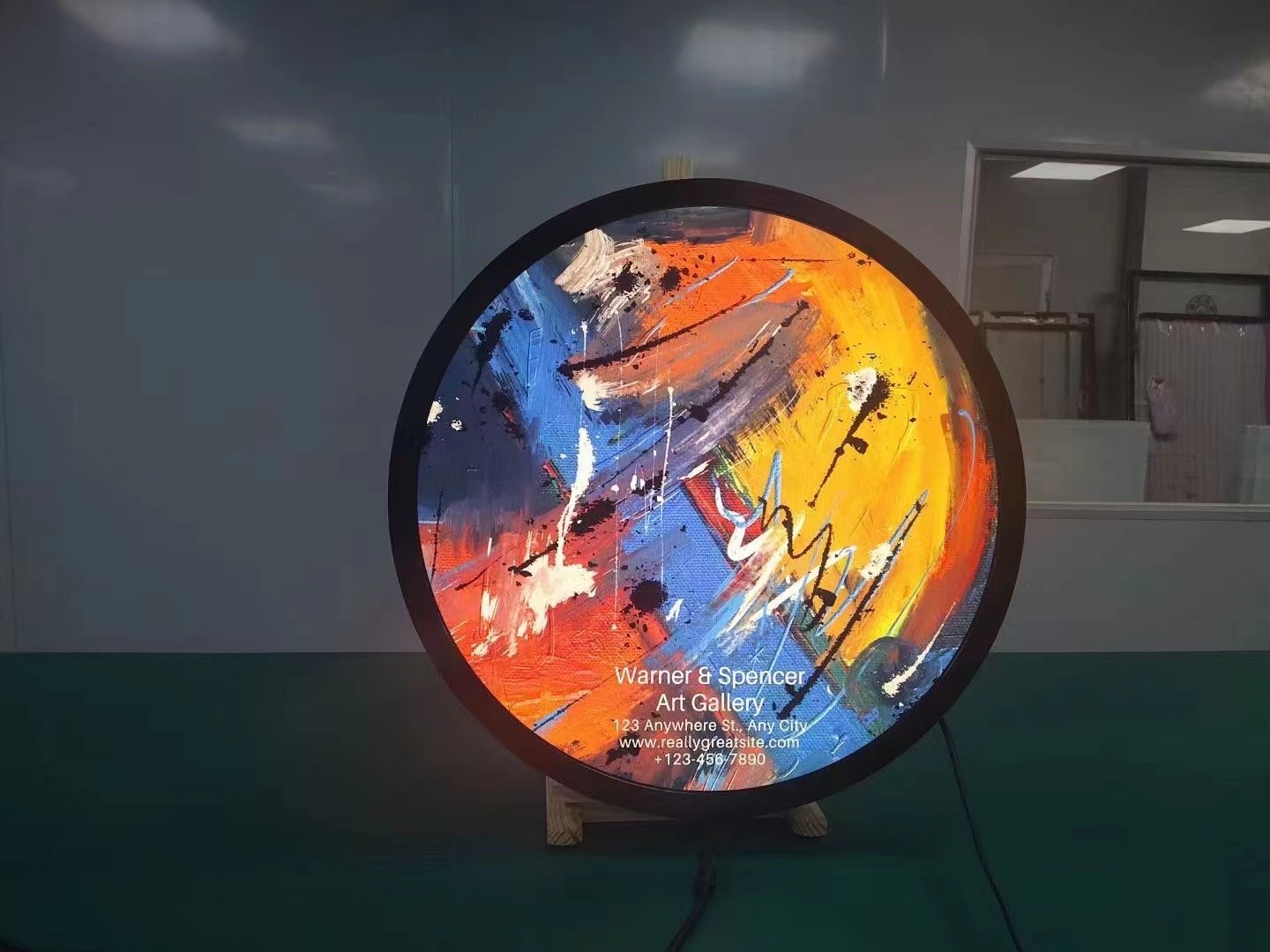

23.6 inch Round Display With Capacitive Touch

23.6 inch Round Display With Capacitive Touch

High definition resolution, showing realistic colors
The full HD LCD panel has a 178-degree viewing angle, high contrast and brightness, 3D digital noise reduction, and intelligently eliminates distortion phenomena such as residual images and double images. Make the display image more clearer, more stable and more colorful.

Multi-point intelligent touch control
HEAN series products adopt G + G 2 points capacitive touch, with fast response speed and strong anti-interference.

Integrated Design
The product design is simple and elegant and has more aesthetic feeling. It is cost-effective, easy to install and full of repair doors, making it easy and convenient to repair. Industrial components have better heat dissipation, lower power consumption, metal front frame design, fine workmanship and humanized detail design.

Support customization
HEAN factory fully adopts IOS9001 advanced solution for management, and can customize the shell shape, body color and silk screen LOGO according to customer's requirements.

1、Product Features

l High definition resolution, showing realistic colors

The full HD LCD panel has a 178-degree viewing angle, high contrast and brightness, 3D digital noise reduction, and intelligently eliminates distortion phenomena such as residual images and double images. Make the display image more clearer, more stable and more colorful.

l Multi-point intelligent touch control

HEAN series products adopt G + G 2 points capacitive touch, with fast response speed and strong anti-interference.

l Integrated Design

The product design is simple and elegant and has more aesthetic feeling. It is cost-effective, easy to install and full of repair doors, making it easy and convenient to repair. Industrial components have better heat dissipation, lower power consumption, metal front frame design, fine workmanship and humanized detail design.

l Support customization

HEAN factory fully adopts IOS9001 advanced solution for management, and can customize the shell shape, body color and silk screen LOGO according to customer's requirements.

2、Technical parameter

Model No.		HZSG242LBRG
Panel	Size	23.6"
	Aspect ratio	1:1
	Resolution	848×848
	Refresh rate	60Hz
	Active area	600.384mm（H）×600.384mm（V）
	Pixel distance	0.708mm（H）×0.708mm（W）
	Display color	16.7M 8Bit
	Backlight type	LED backlight
	Brightness	700cd/m²
	Contrast ratio	4500:1
	Response time	8ms
	Viewing angle	178°/178°
Capacitive touch	Touch points	2 points capacitive touch
	Response time	≥5ms
	Lifing	Touch more than 50 million times
	Touch accuracy	99%
Signal interface	HDMI input	2*HDMI 1.3 1080P
	VGA input	1*1920x1080
	Audio input	PC input, 3.5mm
	Audio output	Earphone output, 3.5mm
	USB	1 (for USB upgrade or touch)
	Built-in audio	2*3W
Power input	Voltage	AC 220V, 50/60Hz
Power input	Power consumption	≥55W
Working environment	Temperature	0℃～50℃
Working environment	Relative humidity	10％～90％RH
Storage environment	Temperature	-10℃～60℃
Storage environment	Relative humidity	10％～90％RH
Dimension	Color	Silver frame glass silk screen + Gold profile frame + black sheet metal back plate

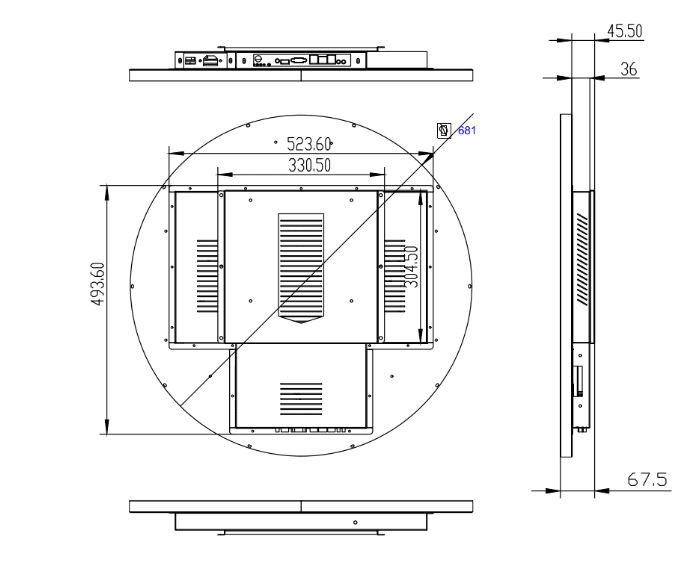

Dimension	Overall dimensions	L681mm×W681mm×T67.5mm
Wall mounted size	Bracket size	L330.5xW304.5
Wall mounted size	Hang hole size	200mm × 200mm
Installation		Wall mounted
Case material		Profile frame + metal shell
New/Gross weight		12/17Kg
Packing list		Round screen 1, wall-mounted bracket 1, AC power *1
